TR4-560WOU-250
ActiveMicro Connectors, Inc.
CABLE CAT6 8CON 23AWG WHT 250'
TR4-560WOU-250
ActiveMicro Connectors, Inc.
CABLE CAT6 8CON 23AWG WHT 250'
Description
General part information
TR4-560WOU-250

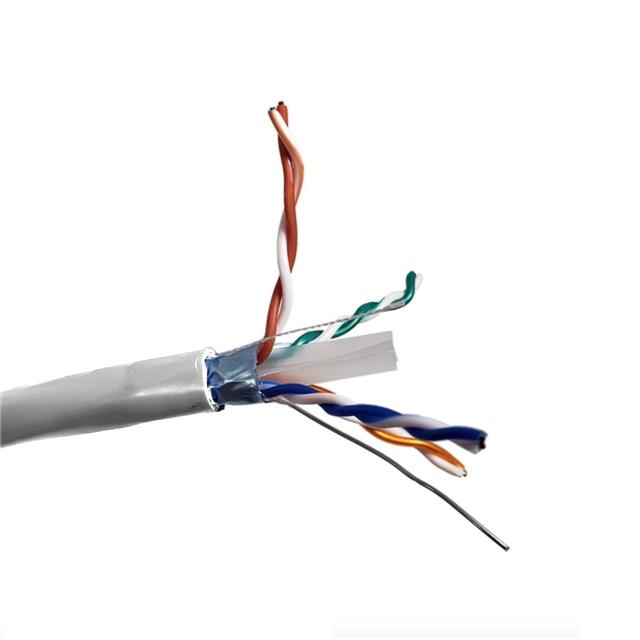

8 (4 Pair Twisted) Conductor Multi-Pair, Cat6 Cable White 23 AWG 250.0' (76.2m)
Technical Specifications
Parameters and characteristics for this part
| Specification | TR4-560WOU-250 |
|---|---|
| Cable Type | Cat6, Multi-Pair |
| Conductor Arrangement | Twisted |
| Conductor Insulation | High Density Polyethylene (HDPE) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | Rip Cord, UV Resistant, Water Resistant |
| Jacket (Insulation) Diameter | 0.276 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | White |
| Length | 250 ft |
| Number of Conductors | 8 |
| Number of Conductors - Pair | 4 |
| Ratings | CM, Style, UL |
| Shield Type | Braid, Foil |
| Usage | Network, Video, LAN, Ethernet |
| Wire Gauge | 23 AWG |
