2901485

Active

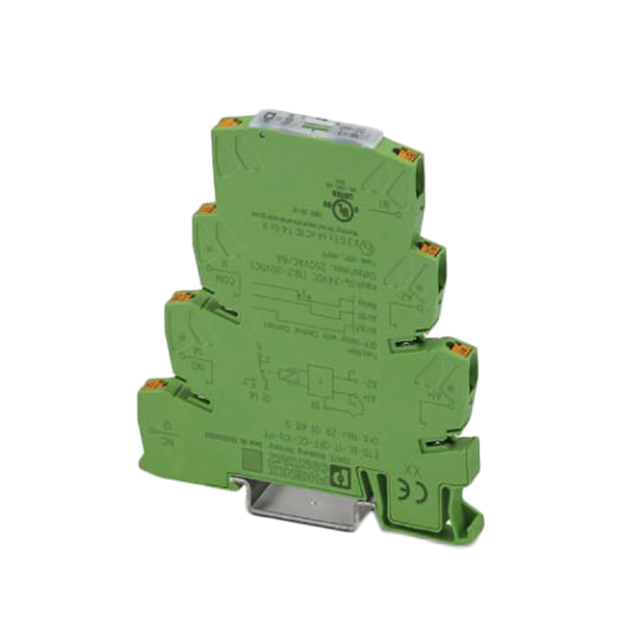

Phoenix Contact

RELAY TIME DELAY 10SEC 6A 250V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY TIME DELAY 10SEC 6A 250V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Off-Delay Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 10 Sec Delay 6A @ 250VAC DIN Rail

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2901485	29014 Series

Contact Rating @ Voltage	6 A, 250 VAC	6 - 250 A
Delay Time [Max]	10 s	10 - 300 s
Delay Time [Min]	0.1 Sec	0.1 - 3 Sec
Function	Off-Delay	Off-Delay, On-Delay, Repeat Cycle
Mounting Type	DIN Rail	DIN Rail
Relay Type	Mechanical Relay	Mechanical Relay
Termination Style	Spring Terminal	Spring Terminal
Timing Adjustment Method	Screwdriver Slot	Screwdriver Slot
Timing Initiate Method	Input Voltage	Input Voltage
Voltage - Supply	24 VDC	24 VDC

RELAY TIME DELAY 10SEC 6A 250V

Part	Voltage - Supply	Relay Type	Termination Style	Delay Time [Min]	Delay Time [Max]	Function	Contact Rating @ Voltage	Timing Adjustment Method	Mounting Type	Timing Initiate Method
Phoenix Contact 2901485	24 VDC	Mechanical Relay	Spring Terminal	0.1 Sec	10 s	Off-Delay	6 A, 250 VAC	Screwdriver Slot	DIN Rail	Input Voltage
Phoenix Contact 2901488	24 VDC	Mechanical Relay	Spring Terminal	3 Cyc	300 Min	Off-Delay	6 A, 250 VAC	Screwdriver Slot	DIN Rail	Input Voltage
Phoenix Contact 2901479	24 VDC	Mechanical Relay	Spring Terminal	3 Cyc	300 Min	On-Delay	6 A, 250 VAC	Screwdriver Slot	DIN Rail	Input Voltage
Phoenix Contact 2901476	24 VDC	Mechanical Relay	Spring Terminal	0.1 Sec	10 s	On-Delay	6 A, 250 VAC	Screwdriver Slot	DIN Rail	Input Voltage
Phoenix Contact 2901481	24 VDC	Mechanical Relay	Spring Terminal	3 Sec	300 Sec	On-Delay	6 A, 250 VAC	Screwdriver Slot	DIN Rail	Input Voltage
Phoenix Contact 2901490	24 VDC	Mechanical Relay	Spring Terminal	3 Sec	300 Sec	Repeat Cycle	6 A, 250 VAC	Screwdriver Slot	DIN Rail	Input Voltage
Phoenix Contact 2901483	24 VDC	Mechanical Relay	Spring Terminal	0.3 Min	30 Min	On-Delay	6 A, 250 VAC	Screwdriver Slot	DIN Rail	Input Voltage
Phoenix Contact 2901492	24 VDC	Mechanical Relay	Spring Terminal	3 Cyc	300 Min	Repeat Cycle	6 A, 250 VAC	Screwdriver Slot	DIN Rail	Input Voltage
Phoenix Contact 2901486	24 VDC	Mechanical Relay	Spring Terminal	3 Sec	300 Sec	Off-Delay	6 A, 250 VAC	Screwdriver Slot	DIN Rail	Input Voltage
Phoenix Contact 2901487	24 VDC	Mechanical Relay	Spring Terminal	0.3 Min	30 Min	Off-Delay	6 A, 250 VAC	Screwdriver Slot	DIN Rail	Input Voltage
