0ALFBK700-BA
ActiveBel Fuse Inc.

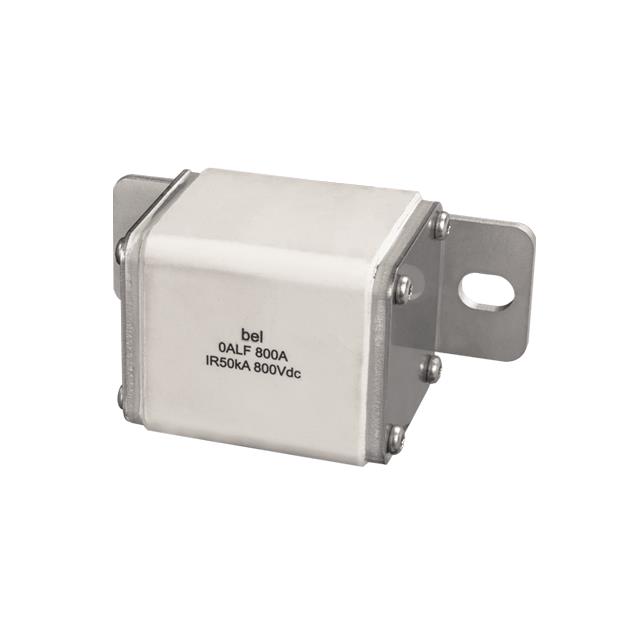

800V-RATED FUSE FOR EV/HEV/ESS A
0ALFBK700-BA
ActiveBel Fuse Inc.
800V-RATED FUSE FOR EV/HEV/ESS A
Description
General part information
0ALFBK700-BA
700A 800 VDC Fuse Square Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 0ALFBK700-BA |
|---|---|
| Applications | Electrical, Industrial |
| Breaking Capacity | 50 kA |
| Current Rating | 700 A |
| Fuse Type | Square |
| Mounting Type | Bolt Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -50 °C |
| Package / Case | Rectangular, Blade |
| Response Time | Fast Blow |
| Size / Dimension Height | 2.48 in |
| Size / Dimension Length | 3.031 in |
| Size / Dimension Width | 2.283 in |
| Voltage Rating - DC | 800 V |
