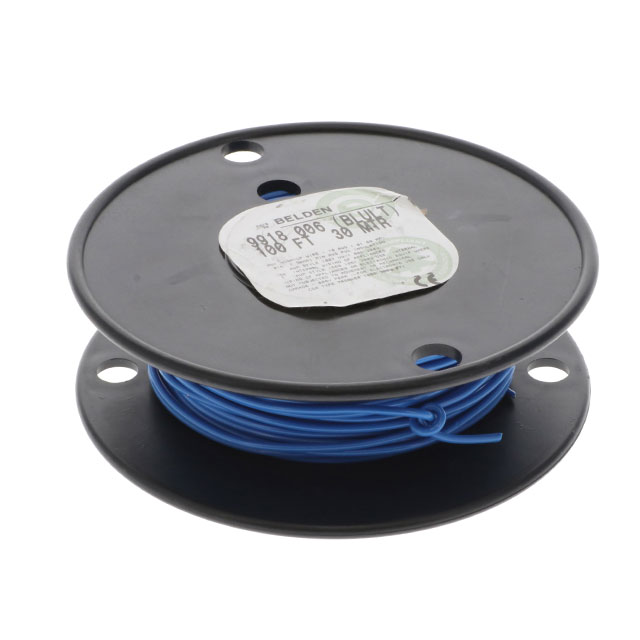

9918 006100

Active

Belden Inc.

HOOK-UP STRND 18AWG BLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cabling Solutions for Industrial Applications

9918 006100

Active

Belden Inc.

HOOK-UP STRND 18AWG BLU

Deep-Dive with AI

DocumentsDatasheet Cabling Solutions for Industrial Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9918 006100

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	2.01 mm
Jacket (Insulation) Diameter [diameter]	0.079 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.017 in
Jacket (Insulation) Thickness	0.43 mm
Jacket Color	Blue
Length [x]	30.5 m
Length [x]	100 ft
Ratings	UL Style 1007/1569
Voltage	300 V
Wire Gauge	18 AWG

9918 Series

Part	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Ratings	Voltage	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket (Insulation) Material	Length	Length
Belden Inc. 9918 006100	16	30 AWG	Hook-Up	Blue	0.017 in	0.43 mm	18 AWG	UL Style 1007/1569	300 V	30.5 m	100 ft	2.01 mm	0.079 in	Copper Tinned	Poly-Vinyl Chloride (PVC)
Belden Inc. 9918 008100	16	30 AWG	Hook-Up	Gray	0.017 in	0.43 mm	18 AWG	UL Style 1007/1569	300 V	30.5 m	100 ft	2.01 mm	0.079 in	Copper Tinned	Poly-Vinyl Chloride (PVC)
Belden Inc. 9918 0041000	16	30 AWG	Hook-Up	Yellow	0.017 in	0.43 mm	18 AWG	UL Style 1007/1569	300 V			2.01 mm	0.079 in	Copper Tinned	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
Belden Inc. 9918 0135000	16	30 AWG	Hook-Up	Blue	0.017 in	0.43 mm	18 AWG	UL Style 1007/1569	300 V			2.01 mm	0.079 in	Copper Tinned	Poly-Vinyl Chloride (PVC)
Belden Inc. 9918 0101000	16	30 AWG	Hook-Up	Black	0.017 in	0.43 mm	18 AWG	UL Style 1007/1569	300 V			2.01 mm	0.079 in	Copper Tinned	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
Belden Inc. 9918 002100	16	30 AWG	Hook-Up	Red	0.017 in	0.43 mm	18 AWG	UL Style 1007/1569	300 V	30.5 m	100 ft	2.01 mm	0.079 in	Copper Tinned	Poly-Vinyl Chloride (PVC)
Belden Inc. 9918 0031000	16	30 AWG	Hook-Up	Orange	0.017 in	0.43 mm	18 AWG	UL Style 1007/1569	300 V			2.01 mm	0.079 in	Copper Tinned	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
Belden Inc. 9918 007100	16	30 AWG	Hook-Up	Violet	0.017 in	0.43 mm	18 AWG	UL Style 1007/1569	300 V	30.5 m	100 ft	2.01 mm	0.079 in	Copper Tinned	Poly-Vinyl Chloride (PVC)
Belden Inc. 9918 001100	16	30 AWG	Hook-Up	Brown	0.017 in	0.43 mm	18 AWG	UL Style 1007/1569	300 V	30.5 m	100 ft	2.01 mm	0.079 in	Copper Tinned	Poly-Vinyl Chloride (PVC)
Belden Inc. 9918 0025000	16	30 AWG	Hook-Up	Red	0.017 in	0.43 mm	18 AWG	UL Style 1007/1569	300 V			2.01 mm	0.079 in	Copper Tinned	Poly-Vinyl Chloride (PVC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 1.67
		200	$ 1.58
		300	$ 1.54
		500	$ 1.48
		700	$ 1.45
		1000	$ 1.41
		2500	$ 1.32
		5000	$ 1.25

Description

General part information

9918 Series

18 AWG Hook-Up Wire 16/30 Blue 300V 100.0' (30.5m)

Documents

Technical documentation and resources

Datasheet

Cabling Solutions for Industrial Applications

Datasheet
