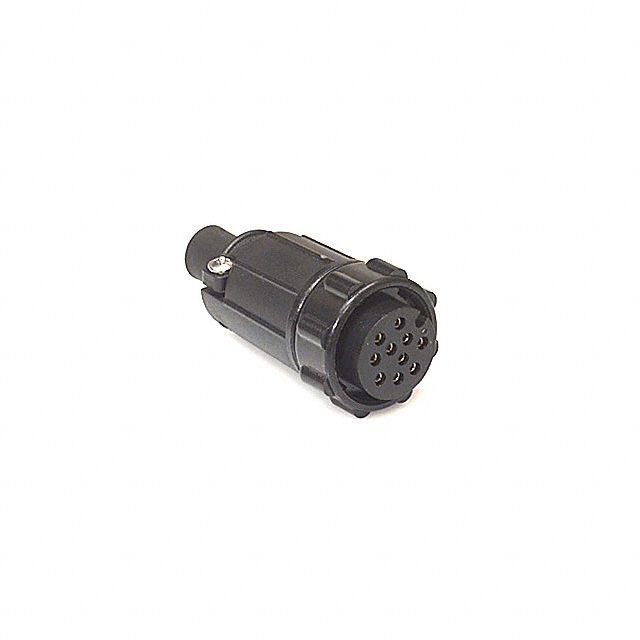

13382-10SG-326

Active

Conxall/Switchcraft

CONN PLUG FMALE 10P SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 10P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

CONN PLUG FMALE 10P SOLDER CUP

Part	Ingress Protection	Contact Material	Connector Type	Mounting Type	Orientation	Backshell Material, Plating	Fastening Type	Contact Finish - Mating	Number of Positions	Voltage Rating	Features	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Shielding	Color	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]
Conxall/Switchcraft 13382-10SG-326	Weathertight	Brass	Female Sockets, Plug	Free Hanging (In-Line)	Keyed	Nylon, Polyamide (PA)	Bayonet Lock	Gold	10	600 V	Backshell, Cable Clamp	0.26 in	7.62 mm	0.3 in	6.6 mm	Unshielded	Black	Plastic	-40 °C	115 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 20.66

General part information

10 Position Circular Connector Plug, Female Sockets Solder Cup
