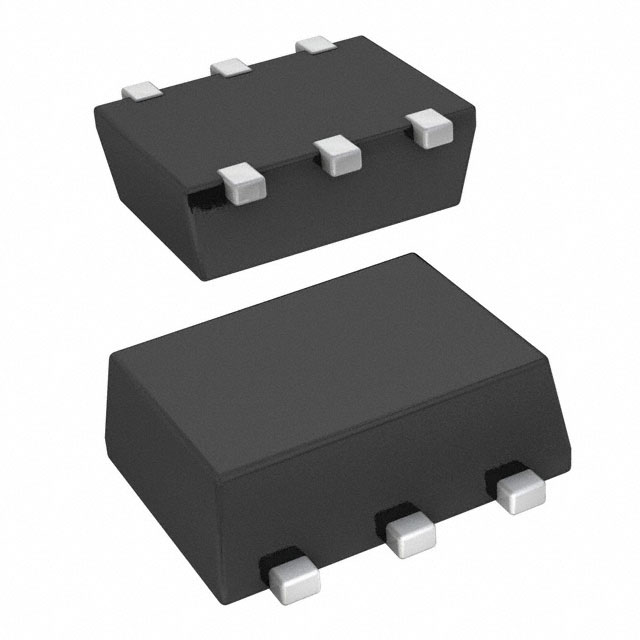

CG2214M6

Active

CEL

IC RF SWITCH SPDT 3GHZ 6MINIMOLD

Search across all available documentation for this part.

Active

CEL

IC RF SWITCH SPDT 3GHZ 6MINIMOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CG2214M6	CG2214 Series

Circuit	SPDT	SPDT
Contents	-	Board(s)
For Use With/Related Products	-	CG2214M6
Frequency Range [Max]	3 GHz	3 GHz
Frequency Range [Min]	50 MHz	50 MHz
IIP3	58 dBm	58 dBm
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.35 dB	0.35 dB
Isolation	23 dB	23 dB
Package / Case	6-SMD	6-SMD, 6-SMD, Gull Wing
RF Type	802.11b/g/n/ac	802.11b/g/n/ac
Supplied Contents	-	Board(s)
Supplier Device Package	6-Minimold	6-Minimold
Test Frequency	3 GHz	3 GHz
Type	-	Switch, SPDT
Utilized IC / Part	-	CG2214M6
Voltage - Supply [Max]	5 V	5 V
Voltage - Supply [Min]	1.8 V	1.8 V

IC RF SWITCH SPDT 3GHZ 6MINIMOLD

Part	Frequency Range [Max]	Frequency Range [Min]	RF Type	Test Frequency	Supplier Device Package	IIP3	Isolation	Circuit	Impedance	Insertion Loss	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Utilized IC / Part	For Use With/Related Products	Contents	Type	Supplied Contents
CEL CG2214M6	3 GHz	50 MHz	802.11b/g/n/ac	3 GHz	6-Minimold	58 dBm	23 dB	SPDT	50 Ohms	0.35 dB	1.8 V	5 V	6-SMD
CEL CG2214M6-EVAL														CG2214M6	CG2214M6	Board(s)	Switch, SPDT	Board(s)
CEL CG2214M6-C2	3 GHz	50 MHz	802.11b/g/n/ac	3 GHz	6-Minimold	58 dBm	23 dB	SPDT	50 Ohms	0.35 dB	1.8 V	5 V	6-SMD, Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Switch IC 802.11b/g/n/ac SPDT 3 GHz 50Ohm 6-Minimold
