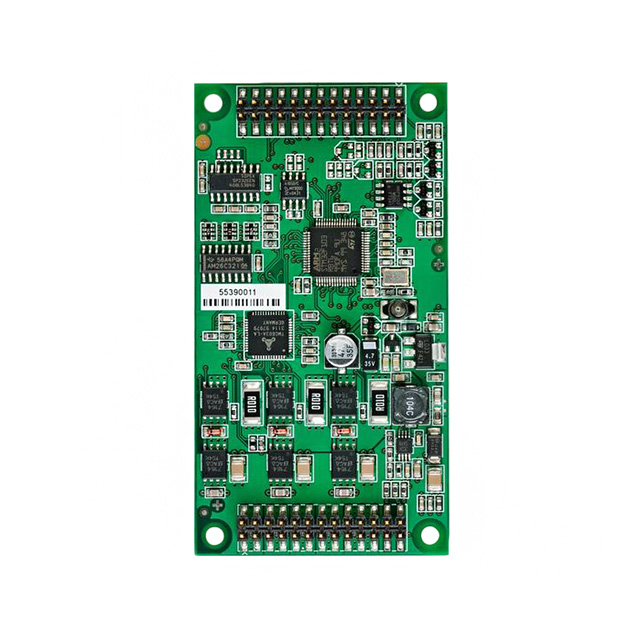

TMCM-1633-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
BOARD CONTROLLER DRIVER BLDC CAN
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-1633-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
BOARD CONTROLLER DRIVER BLDC CAN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCM-1633-CANOPEN |
|---|---|
| Control / Drive Type | Brushless |
| Current - Output | 10 A |
| For Use With/Related Products | BB-163X |
| Interface | CAN, RS-232 |
| Motor Type | Brushless (BLDC) |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Type | Board |
| Voltage - Load [Max] | 50 V |
| Voltage - Load [Min] | 14.5 V |
| Voltage - Supply [Max] | 50 VDC |
| Voltage - Supply [Min] | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 220.00 | |
TMCM-1633 Series
BOARD CONTROLLER DRIVER BLDC CAN
| Part | For Use With/Related Products | Motor Type | Interface | Current - Output | Operating Temperature [Min] | Operating Temperature [Max] | Control / Drive Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Type | Voltage - Load [Min] | Voltage - Load [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1633-CANOPEN | BB-163X | Brushless (BLDC) | CAN, RS-232 | 10 A | -25 °C | 60 °C | Brushless | 50 VDC | 14 V | Chassis Mount | Board | 14.5 V | 50 V |
Description
General part information
TMCM-1633 Series
Brushless 14 ~ 50VDC Supply 10A 14.5 ~ 50V Load
Documents
Technical documentation and resources
No documents available
