Description
General part information

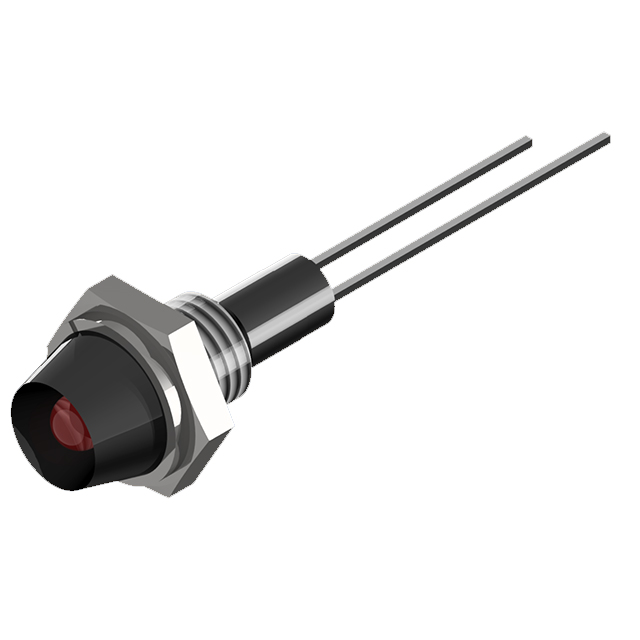

PL320-1R12-B
LED Panel Indicator Red Diffused 34° 2.1V
Technical Specifications
Parameters and characteristics for this part
| Specification | PL320-1R12-B |
|---|---|
| Lamp Color | Red |
| Lens Color | Red |
| Lens Style | Round, Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 15 mcd |
| Panel Cutout Dimension | 0.236 " |
| Panel Cutout Shape | Round |
| Ratings | If (Max), Vf (Typ) |
| Type | LED |
| Viewing Angle | 34 ° |
| Voltage | 2.1 V |
| Wavelength - Peak | 635 nm |
