9730 0605000

Active

Belden Inc.

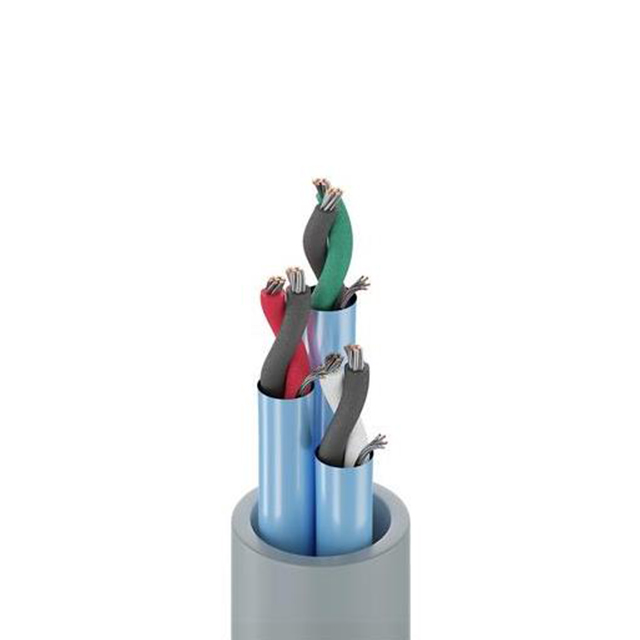

CABLE 6COND 24AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 6COND 24AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9730 0605000

Cable Type	Multi-Conductor
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	8.48 mm
Jacket (Insulation) Diameter [diameter]	0.334 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.048 in
Jacket (Insulation) Thickness	1.219 mm
Jacket Color	Chrome
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Jacket Color	Conductor Insulation	Shield Material	Usage	Jacket (Insulation) Material	Cable Type	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Shield Type	Voltage	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Ratings
Belden Inc. 9730 0605000	8.48 mm	0.334 in	Drain Wire	Chrome	Foam Polyethylene (FPE)	Aluminum	Computer	Poly-Vinyl Chloride (PVC)	Multi-Conductor	6	0.048 in	1.219 mm	100 %	Foil	300 V	24 AWG	-20 C	80 C	Copper Tinned	32 AWG	7	UL Style 2919

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 4.15

General part information

6 (3 Pair Twisted) Conductor Multi-Conductor Cable Chrome 24 AWG Foil 5000' (1524.0m)
