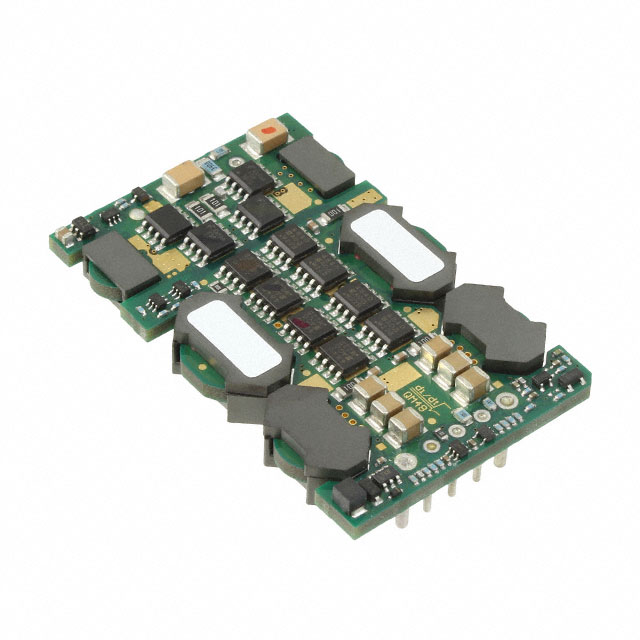

QM48T25050-NDB0

Active

Bel Power Solutions

DC DC CONVERTER 5V 125W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 5V 125W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 25A 36V - 75V Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	QM48T25050-NDB0	QM48T25050 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	25 A	25 A
Features	OTP, Remote On/Off, OVP, UVLO, OCP	OTP, Remote On/Off, OVP, UVLO, OCP, SCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	1/4 Brick, 8-DIP Module	1/4 Brick, 8-DIP Module
Power (Watts)	125 W	125 W
Size / Dimension [x]	57.9 mm	57.9 - 58.4 mm
Size / Dimension [x]	2.28 in	2.28 - 2.3 in
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [z]	0.42 in	0.33 - 0.42 in
Size / Dimension [z]	10.7 mm	8.3 - 10.7 mm
Supplier Device Package	-	Quarter Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2000 V	2000 V
Voltage - Output 1	5 V	5 V

DC DC CONVERTER 5V 125W

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Type	Package / Case	Current - Output (Max) [Max]	Mounting Type	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Output 1	Features	Applications	Control Features	Supplier Device Package
Bel Power Solutions QM48T25050-NBB0G	36.8 mm	1.45 in	2.3 in	0.36 in	9.1 mm	58.4 mm	Isolated Module	1/4 Brick, 8-DIP Module	25 A	Through Hole	1	36 V	2000 V	85 °C	-40 °C	75 V	125 W	5 V	OCP, OTP, OVP, Remote On/Off, UVLO	ITE (Commercial)	Active Low, Enable
Bel Power Solutions QM48T25050-NDB0	36.8 mm	1.45 in	2.28 in	0.42 in	10.7 mm	57.9 mm	Isolated Module	1/4 Brick, 8-DIP Module	25 A	Through Hole	1	36 V	2000 V	85 °C	-40 °C	75 V	125 W	5 V	OCP, OTP, OVP, Remote On/Off, UVLO	ITE (Commercial)	Active Low, Enable
Bel Power Solutions QM48T25050-NAC0G	36.8 mm	1.45 in	2.3 in	0.33 in	8.4 mm	58.4 mm	Isolated Module	1/4 Brick, 8-DIP Module	25 A	Through Hole	1	36 V	2000 V	85 °C	-40 °C	75 V	125 W	5 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)		Quarter Brick
Bel Power Solutions QM48T25050-PAA0	36.8 mm	1.45 in	2.28 in	0.33 in	8.3 mm	57.9 mm	Isolated Module	1/4 Brick, 8-DIP Module	25 A	Through Hole	1	36 V	2000 V	85 °C	-40 °C	75 V	125 W	5 V	OCP, OTP, OVP, Remote On/Off, UVLO	ITE (Commercial)	Active High, Enable
