2003-35-SM-RPLF
ActiveBourns Inc.

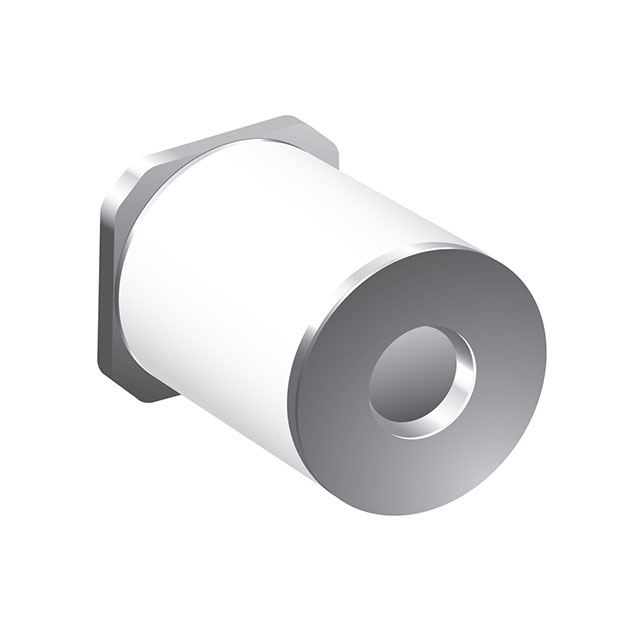

GAS DISCHARGE TUBE, 350V, SMD
Deep-Dive with AI
Search across all available documentation for this part.
2003-35-SM-RPLF
ActiveBourns Inc.
GAS DISCHARGE TUBE, 350V, SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2003-35-SM-RPLF | 2003 Series |
|---|---|---|
| Fail Short | False | False |
| Impulse Discharge Current (8/20µs) | 1000 A | 1000 A |
| Impulse Discharge Current (8/20µs) | 1 kA | 1 kA |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Poles | 2 | 2 |
| Package / Case | 2-SMD Cylinder Square End | 2-SMD Cylinder Square End |
| Tolerance | 20 % | 20 % |
| Voltage - DC Spark Over (Nom) | 350 V | 150 - 470 V |
2003 Series
GAS DISCHARGE TUBE, 230V, SMD
| Part | Voltage - DC Spark Over (Nom) | Tolerance | Package / Case | Number of Poles | Fail Short | Impulse Discharge Current (8/20µs) | Impulse Discharge Current (8/20µs) | Mounting Type |
|---|---|---|---|---|---|---|---|---|
Bourns Inc. 2003-23-SM-RPLF | 230 V | 20 % | 2-SMD Cylinder Square End | 2 | 1000 A | 1 kA | Surface Mount | |
Bourns Inc. 2003-15-SM-RPLF | 150 V | 20 % | 2-SMD Cylinder Square End | 2 | 1000 A | 1 kA | Surface Mount | |
Bourns Inc. 2003-35-SM-RPLF | 350 V | 20 % | 2-SMD Cylinder Square End | 2 | 1000 A | 1 kA | Surface Mount | |
Bourns Inc. 2003-47-SM-RPLF | 470 V | 20 % | 2-SMD Cylinder Square End | 2 | 1000 A | 1 kA | Surface Mount | |
Bourns Inc. 2003-25-SM-RPLF | 250 V | 20 % | 2-SMD Cylinder Square End | 2 | 1000 A | 1 kA | Surface Mount | |
Bourns Inc. 2003-40-SM-RPLF | 400 V | 20 % | 2-SMD Cylinder Square End | 2 | 1000 A | 1 kA | Surface Mount | |
Bourns Inc. 2003-20-SM-RPLF | 200 V | 20 % | 2-SMD Cylinder Square End | 2 | 1000 A | 1 kA | Surface Mount | |
Bourns Inc. 2003-12-SM-RPLF | 20 % | 2-SMD Cylinder Square End | 2 | 1000 A | 1 kA | Surface Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.68 | |
| 5 | $ 0.66 | |||
| 10 | $ 0.64 | |||
| 50 | $ 0.54 | |||
| 100 | $ 0.44 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.68 | ||
| 5 | $ 0.66 | |||
| 10 | $ 0.64 | |||
| 50 | $ 0.54 | |||
| 100 | $ 0.44 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.30 | |||
| Tape & Reel (TR) | 2500 | $ 0.30 | ||
| 5000 | $ 0.28 | |||
| 7500 | $ 0.27 | |||
| 12500 | $ 0.25 | |||
| Newark | Each | 1 | $ 0.75 | |
| 10 | $ 0.59 | |||
| 25 | $ 0.57 | |||
| 50 | $ 0.54 | |||
| 100 | $ 0.51 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.42 | |||
| 2500 | $ 0.37 | |||
Description
General part information
2003 Series
Gas Discharge Tube 350 V 1000A (1kA) ±20% 2 Pole Surface Mount
