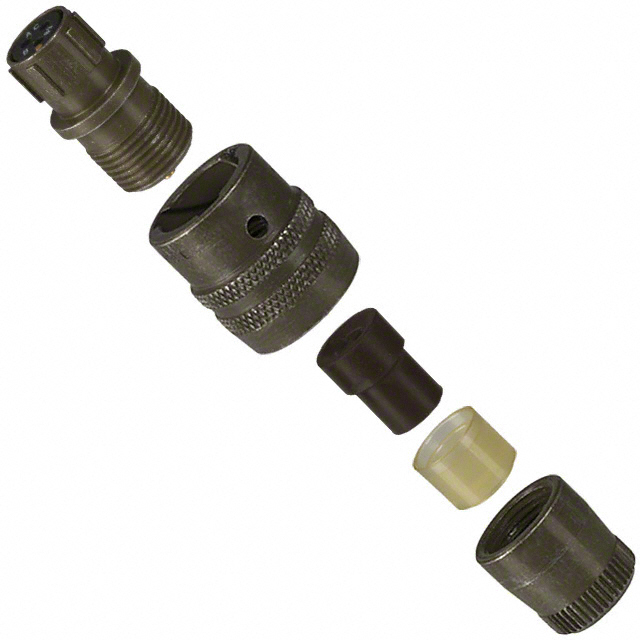

MS3116E-8-3S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3116E-8-3S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3116E-8-3S | MS3116E8 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 8-3 | 8-3 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MS3116E8 Series
CONN PLUG FMALE 3P GOLD SLDR CUP
| Part | Fastening Type | Features | Orientation | Primary Material | Shell Material | Grade | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Contact Material | Contact Finish - Mating | Color | Ingress Protection | Applications | Insert Material | Shell Size - Insert | Mounting Type | Backshell Material, Plating | Shell Finish | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3116E-8-3S | Bayonet Lock | Backshell, Coupling Nut | N | Metal | Aluminum | Military | Female Sockets, Plug | -55 °C | 125 °C | Unshielded | Copper Alloy | Gold | Olive Drab | Environment Resistant | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Neoprene | 8-3 | Free Hanging (In-Line) | Aluminum, Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium | MIL-DTL-26482 Series I |
Amphenol Industrial Operations MS3116E8-2SW |
Description
General part information
MS3116E8 Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
