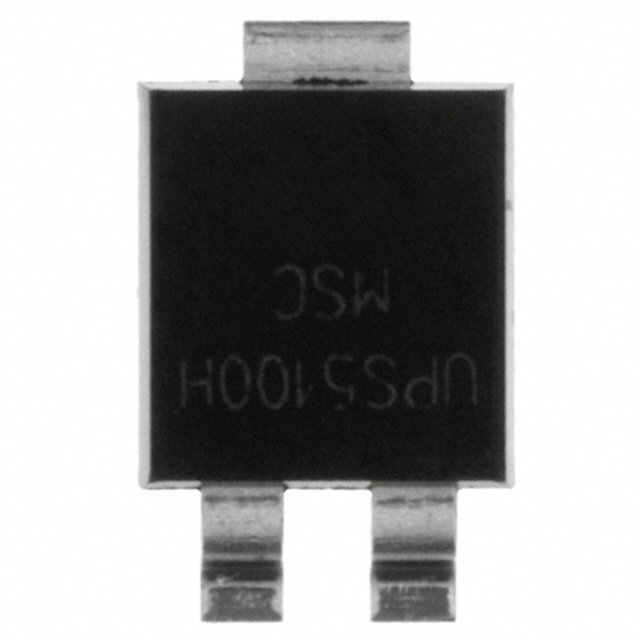

UPS5100HE3

Obsolete

Microsemi Corporation

DIODE SCHOTTKY 100V 5A POWERMITE

Search across all available documentation for this part.

Obsolete

Microsemi Corporation

DIODE SCHOTTKY 100V 5A POWERMITE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UPS5100HE3	UPS5100 Series

	-	-
Capacitance @ Vr, F	150 pF	150 pF
Current - Average Rectified (Io)	5 A	5 A
Current - Reverse Leakage @ Vr	200 µA	200 µA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	125 °C	125 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	Powermite®3	Powermite®3
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	Powermite 3	Powermite 3
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V	100 V
Voltage - Forward (Vf) (Max) @ If	810 mV	810 mV

DIODE SCHOTTKY 5A 100V POWERMITE

Part	Supplier Device Package	Mounting Type	Technology	Package / Case	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)
Microsemi Corporation UPS5100H/TR13
Microsemi Corporation UPS5100HE3	Powermite 3	Surface Mount	Schottky	Powermite®3	-55 °C	125 °C	150 pF	810 mV	200 mA, 500 ns	100 V	200 µA	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 100 V 5A Surface Mount Powermite 3
