FMN.0M.303.XLCT

Active

LEMO

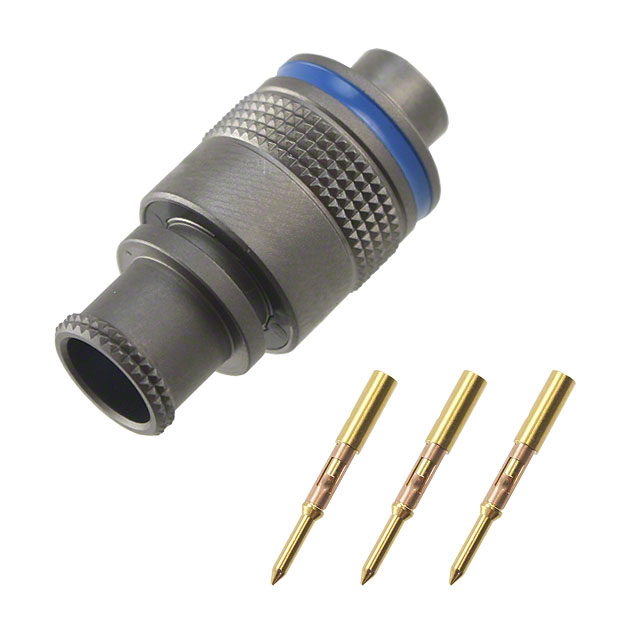

CONN PLUG MALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FMN.0M.303.XLCT	FMN.0M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Cable Opening [diameter]	8 mm	8 mm
Cable Opening [diameter]	0.315 in	0.315 in
Color	Gray	Gray
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	8 A	6.5 - 10 A
Features	Coupling Nut	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	-	2 - 4
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	303	302 - 305
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN PLUG MALE 2POS GOLD CRIMP

Part	Orientation	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Connector Type	Shielding	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Shell Finish	Mounting Type	Color	Applications	Features	Current Rating (Amps)	Shell Size - Insert	Termination	Insert Material	Ingress Protection
LEMO FMN.0M.302.XLCT	N	2	1 µm	39.4 µin	Aluminum Alloy	Gold	-55 °C	200 °C	Metal	Male Pins, Plug	Shielded	Brass	8 mm	0.315 in	Nickel	Free Hanging (In-Line)	Gray	Aerospace, Automotive, Aviation, Military	Coupling Nut	10 A	302	Crimp	Polyetheretherketone (PEEK)	IP68 - Dust Tight, Waterproof
LEMO FMN.0M.305.XLC	N		1 µm	39.4 µin	Aluminum Alloy	Gold	-55 °C	200 °C	Metal	Male Pins, Plug	Shielded	Brass	8 mm	0.315 in	Nickel	Free Hanging (In-Line)	Gray	Aerospace, Automotive, Aviation, Military	Coupling Nut	6.5 A	305	Crimp	Polyetheretherketone (PEEK)	IP68 - Dust Tight, Waterproof
LEMO FMN.0M.303.XLCT	N		1 µm	39.4 µin	Aluminum Alloy	Gold	-55 °C	200 °C	Metal	Male Pins, Plug	Shielded	Brass	8 mm	0.315 in	Nickel	Free Hanging (In-Line)	Gray	Aerospace, Automotive, Aviation, Military	Coupling Nut	8 A	303	Crimp	Polyetheretherketone (PEEK)	IP68 - Dust Tight, Waterproof
LEMO FMN.0M.304.XLCT	N	4	1 µm	39.4 µin	Aluminum Alloy	Gold	-55 °C	200 °C	Metal	Male Pins, Plug	Shielded	Brass	8 mm	0.315 in	Nickel	Free Hanging (In-Line)	Gray	Aerospace, Automotive, Aviation, Military	Coupling Nut	7 A	304	Crimp	Polyetheretherketone (PEEK)	IP68 - Dust Tight, Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Male Pins Crimp
