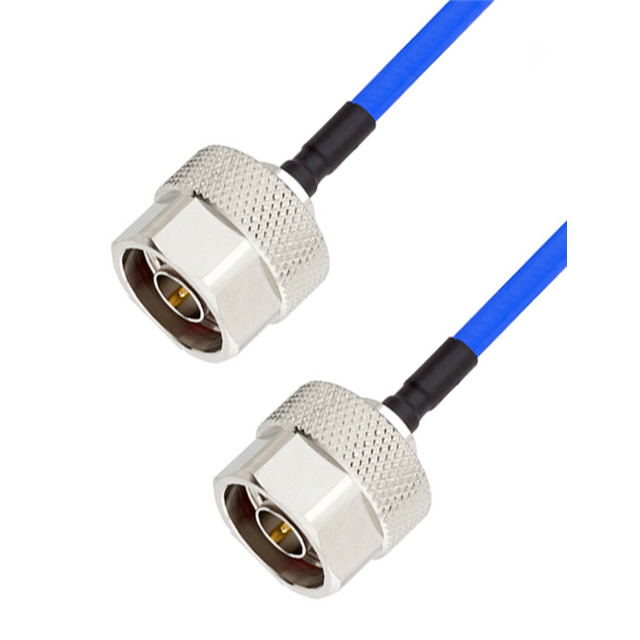

LSA29-N1N1-S36

Active

ConductRF

CBL ASSY NTYPE PLUG TO PLUG 36"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LSA29-N1N1-S36

Active

ConductRF

CBL ASSY NTYPE PLUG TO PLUG 36"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LSA29-N1N1-S36	LSA29 Series

1st Connector	-	SMA Plug, Right Angle, N-Type Jack, N-Type Plug, SMA Jack
1st Connector Mounting Feature	-	Bulkhead - Front Side Nut
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Panel Mount
1st Contact Gender	Male	Male, Female
2nd Connector	N-Type Plug	SMA Plug, Right Angle, SMA Plug, N-Type Plug, N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	3.58mm OD Coaxial Cable	3.58mm OD Coaxial Cable
Color	Blue	Blue
Connector Impedance	50 Ohms	50 Ohms
Features	Shielded	Shielded
Frequency - Max [Max]	18 GHz	18 GHz
Length	91.44 cm	1.5 - 1200 mm
Length	36 in	5 - 48 "
Length	-	457.2 mm
Length	-	406.4 - 457.2 mm
Length	-	4 - 5 ft
Length	-	16 in
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Impedance	50 Ohms	50 Ohms
Style	N-Type to N-Type	SMA to SMA, N-Type to N-Type, SMA to N-Type

LSA29 Series

CBL ASSY SMA PLUG TO PLUG 24"

Part	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	1st Connector Mounting Type	Connector Impedance	Color	2nd Connector Mounting Type	2nd Contact Gender	Style	Features	1st Connector	Frequency - Max [Max]	1st Contact Gender	Cable Type	2nd Connector	Overall Impedance	1st Connector Mounting Feature	Length [x]	Length [x]	Length
ConductRF LSA29-S2S2-S24	24 "	609.6 mm	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	SMA to SMA	Shielded	Right Angle, SMA Plug	18 GHz	Male	3.58mm OD Coaxial Cable	SMA Plug, Right Angle	50 Ohms
ConductRF LSA29-S1S1-S36	36 in	91.44 cm	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	SMA to SMA	Shielded	SMA Plug	18 GHz	Male	3.58mm OD Coaxial Cable	SMA Plug	50 Ohms
ConductRF LSA29-S1S1-S24	24 "	609.6 mm	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	SMA to SMA	Shielded	SMA Plug	18 GHz	Male	3.58mm OD Coaxial Cable	SMA Plug	50 Ohms
ConductRF LSA29-N1N3-S18			-55 °C	125 °C	Panel Mount	50 Ohms	Blue	Free Hanging (In-Line)	Male	N-Type to N-Type	Shielded	N-Type Jack	18 GHz	Female	3.58mm OD Coaxial Cable	N-Type Plug	50 Ohms	Bulkhead - Front Side Nut	457.2 mm	457.2 mm
ConductRF LSA29-S2S2-S12	12 "	304.8 mm	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	SMA to SMA	Shielded	Right Angle, SMA Plug	18 GHz	Male	3.58mm OD Coaxial Cable	SMA Plug, Right Angle	50 Ohms
ConductRF LSA29-N1S1-S24	24 "	609.6 mm	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	SMA to N-Type	Shielded	SMA Plug	18 GHz	Male	3.58mm OD Coaxial Cable	N-Type Plug	50 Ohms
ConductRF LSA29-S1S2-S24	24 "	609.6 mm	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	SMA to SMA	Shielded	SMA Plug	18 GHz	Male	3.58mm OD Coaxial Cable	SMA Plug, Right Angle	50 Ohms
ConductRF LSA29-S1S1-S18			-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	SMA to SMA	Shielded	SMA Plug	18 GHz	Male	3.58mm OD Coaxial Cable	SMA Plug	50 Ohms		457.2 mm	457.2 mm
ConductRF LSA29-N1N1-S60	5 '	1.5 m	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	N-Type to N-Type	Shielded		18 GHz	Male	3.58mm OD Coaxial Cable	N-Type Plug	50 Ohms				5 ft
ConductRF LSA29-N1N3-S12	12 "	304.8 mm	-55 °C	125 °C	Panel Mount	50 Ohms	Blue	Free Hanging (In-Line)	Male	N-Type to N-Type	Shielded	N-Type Jack	18 GHz	Female	3.58mm OD Coaxial Cable	N-Type Plug	50 Ohms	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 73.88
		5	$ 69.53
		10	$ 65.67
		25	$ 59.10
		50	$ 53.73
		100	$ 51.39
		250	$ 49.26
		500	$ 47.28
		1000	$ 45.47

Description

General part information

LSA29 Series

Cable Assembly Coaxial N-Type to N-Type 3.58mm OD Coaxial Cable 36.00" (914.40mm)
