LEV200ABNAA

Active

TE Connectivity Aerospace, Defense and Marine

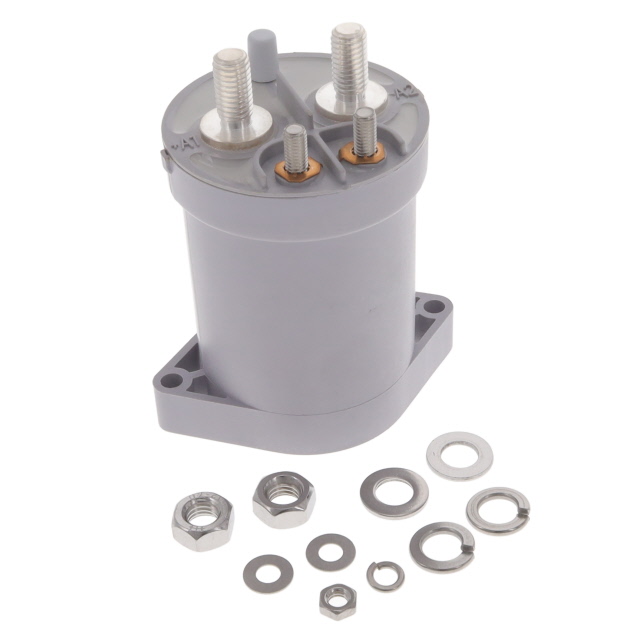

RELAY CONTACTOR SPST 500A 24V

Deep-Dive with AI

Search across all available documentation for this part.

LEV200ABNAA

Active

TE Connectivity Aerospace, Defense and Marine

RELAY CONTACTOR SPST 500A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 156.27
		10	$ 136.50
		25	$ 129.35
		50	$ 124.19

Description

General part information

LEV200 Series

RELAY CONTACTOR SPST 500A 24V

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LEV200ABNAA	LEV200 Series

	-	-
Coil Current	600 mA	1.1 - 600 A
Coil Resistance	40 Ohms	11 - 40 Ohms
Coil Voltage	28 VDC	12 - 115 VDC
Contact Form	SPST-NO (DM) (1 Form X)	SPST-NO (DM) (1 Form X)
Contact Rating (Current)	500 A	500 A
Features	Sealed - Hermetically	Sealed - Hermetically
Mounting Type	Chassis Mount	Chassis Mount
Must Operate Voltage	19 VDC	9 - 19 VDC
Must Release Voltage	5 VDC	2 - 5 VDC
Operate Time	25 ms	25 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	12 ms	12 ms
Switching Voltage	900 VDC	900 VDC
Termination Style	Stud	Wire Leads, Stud

LEV200 Series

RELAY CONTACTOR SPST 500A 12V

Part	Coil Current	Must Operate Voltage	Coil Resistance	Coil Voltage	Contact Rating (Current)	Contact Form	Operate Time	Must Release Voltage	Features	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Switching Voltage
TE Connectivity Aerospace, Defense and Marine LEV200H4ANA	1.1 A	9 VDC	11 Ohms	12 VDC	500 A	SPST-NO (DM) (1 Form X)	25 ms	2 VDC	Sealed - Hermetically	Stud, Wire Leads	Chassis Mount	85 °C	-40 °C	12 ms	900 VDC
TE Connectivity Aerospace, Defense and Marine LEV200A9ANA
TE Connectivity Aerospace, Defense and Marine LEV200A4NAA	1.1 A	9 VDC	11 Ohms	12 VDC	500 A	SPST-NO (DM) (1 Form X)	25 ms	2 VDC	Sealed - Hermetically	Stud	Chassis Mount	85 °C	-40 °C	12 ms	900 VDC
TE Connectivity Aerospace, Defense and Marine LEV200L5ANF
TE Connectivity Aerospace, Defense and Marine LEV200HOANA01				115 VAC	500 A	SPST-NO (DM) (1 Form X)	25 ms		Sealed - Hermetically	Stud, Wire Leads	Chassis Mount	85 °C	-40 °C	12 ms	900 VDC
TE Connectivity Aerospace, Defense and Marine LEV200H5ANA	600 mA	19 VDC	40 Ohms	24 VDC	500 A	SPST-NO (DM) (1 Form X)	25 ms	5 VDC	Sealed - Hermetically	Stud, Wire Leads	Chassis Mount	85 °C	-40 °C	12 ms	900 VDC
TE Connectivity Aerospace, Defense and Marine LEV200A4ANF	1.1 A	9 VDC	11 Ohms	12 VDC	500 A	SPST-NO (DM) (1 Form X)	25 ms	2 VDC	Sealed - Hermetically	Stud, Wire Leads	Chassis Mount	85 °C	-40 °C	12 ms	900 VDC
TE Connectivity Aerospace, Defense and Marine LEV200A5ANA	600 mA	19 VDC	40 Ohms	24 VDC	500 A	SPST-NO (DM) (1 Form X)	25 ms	5 VDC	Sealed - Hermetically	Stud, Wire Leads	Chassis Mount	85 °C	-40 °C	12 ms	900 VDC
TE Connectivity Aerospace, Defense and Marine LEV200A4NAF	1.1 A	9 VDC	11 Ohms	12 VDC	500 A	SPST-NO (DM) (1 Form X)	25 ms	2 VDC	Sealed - Hermetically	Stud	Chassis Mount	85 °C	-40 °C	12 ms	900 VDC
TE Connectivity Aerospace, Defense and Marine LEV200ABNAA	600 mA	19 VDC	40 Ohms	28 VDC	500 A	SPST-NO (DM) (1 Form X)	25 ms	5 VDC	Sealed - Hermetically	Stud	Chassis Mount	85 °C	-40 °C	12 ms	900 VDC
