PT02E-18-32S
ActiveAmphenol Industrial Operations

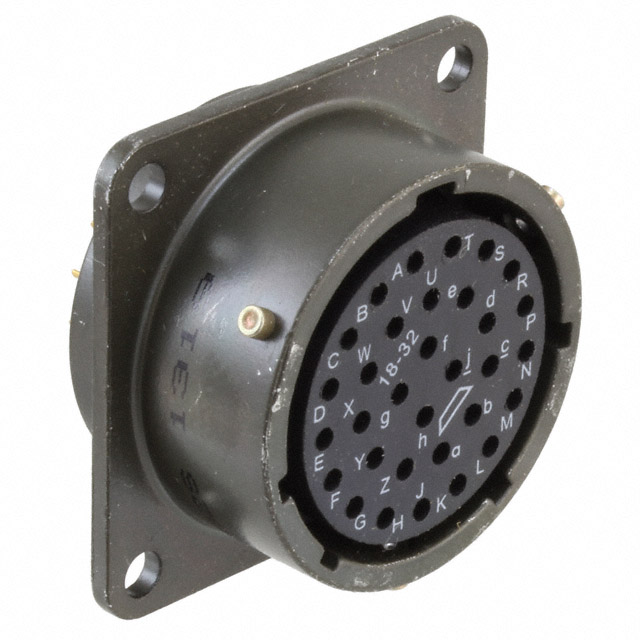

CONN RCPT FMALE 32P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
PT02E-18-32S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 32P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT02E-18-32S | PT02E Series |
|---|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Communication Systems, Industrial, Mass Transit, Aerospace, Instrumentation, Military |
| Backshell Material, Plating | Olive Drab Cadmium, Aluminum | Electroless Nickel, Aluminum, Olive Drab Cadmium, Black Zinc Cobalt |
| Color | Olive Drab | Silver, Olive Drab, Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | Environment Sealed | Environment Resistant, Environment Sealed |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | - | 2 - 61 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W, Y, X |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Electroless Nickel, Olive Drab Chromate over Cadmium, Black Zinc Cobalt, Olive Drab Zinc Cobalt |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 14-12, 10-6, 12-4, 8-2, 8-4, 18-11, 18-5, 12-3, 12-8, 10-2, 8-3, 8-33, 10-5, 14-5 |
| Shell Size - Insert | - | 20 |
| Shell Size - Insert | - | 16 |
| Shell Size - Insert | - | 19 |
| Shell Size - Insert | - | 14 |
| Shell Size - Insert [Max] | 32 | 14 - 98 |
| Shell Size - Insert [Min] | 18 | 8 - 24 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | - | 600 - 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 72.70 | |
| 10 | $ 56.44 | |||
| 25 | $ 51.29 | |||
| 50 | $ 47.81 | |||
| 100 | $ 44.67 | |||
PT02E Series
PT 21C 21#20 SKT RECP
| Part | Contact Finish - Mating | Primary Material | Shielding | Backshell Material, Plating | Number of Positions | Orientation | Fastening Type | Color | Ingress Protection | Mounting Feature | Shell Material | Applications | Shell Finish | Connector Type | Insert Material | Qualification | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Shell Size - Insert | Voltage Rating | Shell Size - Insert [Max] [diameter] | Shell Size - Insert [Min] [diameter] | Number of Positions | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PT02E22-21S-023 | Gold | Metal | Unshielded | Aluminum, Electroless Nickel | 21 | N | Bayonet Lock | Silver | Environment Resistant | Flange | Aluminum | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Electroless Nickel | Receptacle, Female Sockets | Neoprene | MIL-DTL-26482 Series I | Copper Alloy | -55 °C | 125 °C | 21 | 22 | |||||||
Amphenol Industrial Operations PT02E-14-12P | Gold | Metal | Unshielded | Aluminum, Olive Drab Cadmium | 12 | N | Bayonet Lock | Olive Drab | Environment Sealed | Flange | Aluminum | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Male Pins, Receptacle | Neoprene | MIL-DTL-26482 Series I | Copper Alloy | -55 °C | 125 °C | 14-12 | ||||||||
Amphenol Industrial Operations PT02E-18-32S | Gold | Metal | Unshielded | Aluminum, Olive Drab Cadmium | N | Bayonet Lock | Olive Drab | Environment Sealed | Flange | Aluminum | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Receptacle, Female Sockets | Neoprene | MIL-DTL-26482 Series I | Copper Alloy | -55 °C | 125 °C | 32 | 18 | ||||||||
Amphenol Industrial Operations PT02E-10-6S | Gold | Metal | Unshielded | Aluminum, Olive Drab Cadmium | 6 | N | Bayonet Lock | Olive Drab | Environment Sealed | Flange | Aluminum | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Receptacle, Female Sockets | Neoprene | MIL-DTL-26482 Series I | Copper Alloy | -55 °C | 125 °C | 10-6 | ||||||||
Amphenol Industrial Operations PT02E14-18S-023 | Gold | Metal | Unshielded | Aluminum, Electroless Nickel | 18 | N | Bayonet Lock | Silver | Environment Resistant | Flange | Aluminum | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Electroless Nickel | Receptacle, Female Sockets | Neoprene | MIL-DTL-26482 Series I | Copper Alloy | -55 °C | 125 °C | 18 | 14 | 600 VAC | ||||||
Amphenol Industrial Operations PT02E-12-4S(025) | Gold | Metal | Unshielded | Aluminum, Black Zinc Cobalt | 4 | N | Bayonet Lock | Black | Environment Sealed | Flange | Aluminum | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Black Zinc Cobalt | Receptacle, Female Sockets | Neoprene | MIL-DTL-26482 Series I | Copper Alloy | -55 °C | 125 °C | 12-4 | ||||||||
Amphenol Industrial Operations PT02E18-30P-027 | Gold | Metal | Unshielded | Aluminum, Black Zinc Cobalt | 30 | N | Bayonet Lock | Black | Environment Resistant | Flange | Aluminum | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Black Zinc Cobalt | Male Pins, Receptacle | Neoprene | MIL-DTL-26482 Series I | Copper Alloy | -55 °C | 125 °C | 30 | 18 | |||||||
Amphenol Industrial Operations PT02E-8-2S | Gold | Metal | Unshielded | Aluminum, Olive Drab Cadmium | 2 | N | Bayonet Lock | Olive Drab | Environment Sealed | Flange | Aluminum | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Receptacle, Female Sockets | Neoprene | MIL-DTL-26482 Series I | Copper Alloy | -55 °C | 125 °C | 8-2 | ||||||||
Amphenol Industrial Operations PT02E-8-4S | Gold | Metal | Unshielded | Aluminum, Olive Drab Cadmium | 4 | N | Bayonet Lock | Olive Drab | Environment Sealed | Flange | Aluminum | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Receptacle, Female Sockets | Neoprene | MIL-DTL-26482 Series I | Copper Alloy | -55 °C | 125 °C | 8-4 | ||||||||
Amphenol Industrial Operations PT02E18-11S-027 | Gold | Metal | Unshielded | Aluminum, Black Zinc Cobalt | 11 | N | Bayonet Lock | Black | Environment Resistant | Flange | Aluminum | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Black Zinc Cobalt | Receptacle, Female Sockets | Neoprene | MIL-DTL-26482 Series I | Copper Alloy | -55 °C | 125 °C | 18-11 |
Description
General part information
PT02E Series
32 Position Circular Connector Receptacle, Female Sockets Solder Cup
