2-1103634-3
ActiveTE Connectivity AMP Connectors

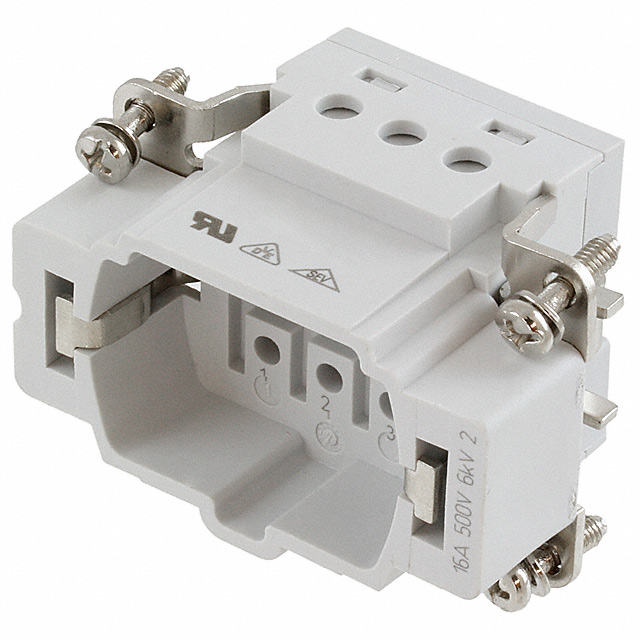

INSERT MALE 6POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
2-1103634-3
ActiveTE Connectivity AMP Connectors
INSERT MALE 6POS+1GND CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-1103634-3 | 1103634 Series |
|---|---|---|
| Color | Gray | Gray |
| Connector Type | Insert without Contacts | Insert without Contacts |
| Contact Finish | - | Silver |
| Current Rating (Amps) | 16 A | 16 A |
| Gender | Male | Male |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | 6+Ground | 6+Ground |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | 3 | 3 |
| Termination Style | Crimp | Crimp, Screw |
| Voltage Rating | 400 V | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.93 | |
| 10 | $ 27.18 | |||
| 25 | $ 25.26 | |||
1103634 Series
INSERT MALE 6POS+1GND CRIMP
| Part | Material Flammability Rating | Connector Type | Voltage Rating | Current Rating (Amps) | Termination Style | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Size | Color | Number of Positions | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1103634-3 | UL94 V-0 | Insert without Contacts | 400 V | 16 A | Crimp | Male | 125 °C | -40 °C | 3 | Gray | 6+Ground | |
TE Connectivity AMP Connectors 1-1103634-1 | UL94 V-0 | 400 V | 16 A | Screw | Male | 125 °C | -40 °C | 3 | Gray | 6+Ground | Silver |
Description
General part information
1103634 Series
Male Insert without Contacts Gray 6+Ground Position Crimp
Documents
Technical documentation and resources
No documents available
