16980-7SG-522
ActiveConxall/Switchcraft

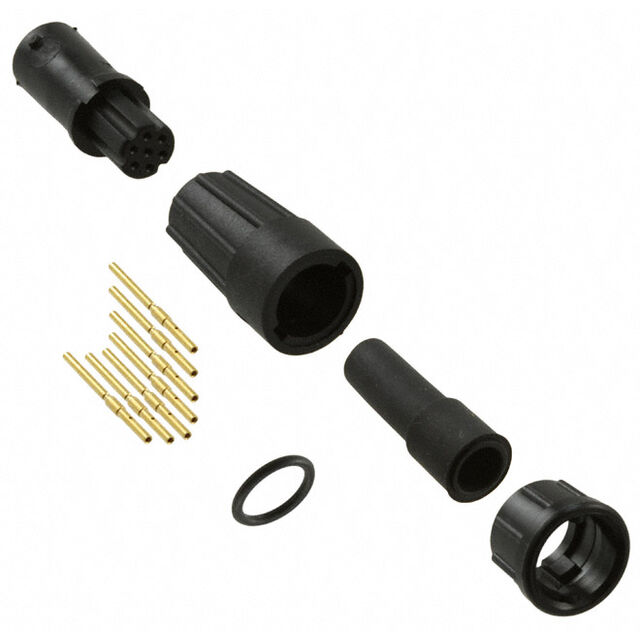

CONN PLUG FMALE 7POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
16980-7SG-522
ActiveConxall/Switchcraft
CONN PLUG FMALE 7POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 16980-7SG-522 | 16980-7S Series |
|---|---|---|
| Applications | Medical, Data, Instrumentation, Industrial | Medical, Data, Instrumentation, Industrial |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening [Max] [diameter] | 5.84 mm | 5.84 mm |
| Cable Opening [Max] [diameter] | 0.23 in | 0.23 in |
| Cable Opening [Min] [diameter] | 0.22 in | 0.22 in |
| Cable Opening [Min] [diameter] | 5.59 mm | 5.59 mm |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 3.5 A | 3.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB | UL94 HB |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 7 | 7 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | B | B |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 VAC |
16980-7S Series
CONN PLUG FMALE 7POS GOLD CRIMP
| Part | Contact Material | Contact Finish - Mating | Termination | Fastening Type | Orientation | Shielding | Applications | Backshell Material, Plating | Material Flammability Rating | Color | Primary Material | Mounting Type | Voltage Rating | Current Rating (Amps) | Connector Type | Ingress Protection | Features | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 16980-7SG-318 | Copper Alloy | Gold | Crimp | Bayonet Lock | B | Unshielded | Data, Industrial, Instrumentation, Medical | Thermoplastic | UL94 HB | Black | Plastic | Free Hanging (In-Line) | 600 VAC | 3.5 A | Female Sockets, Plug | IP67 - Dust Tight, Waterproof | Backshell | 85 °C | -40 °C | 7 | ||||
Conxall/Switchcraft 16980-7SG-522 | Copper Alloy | Gold | Crimp | Bayonet Lock | B | Unshielded | Data, Industrial, Instrumentation, Medical | Thermoplastic | UL94 HB | Black | Plastic | Free Hanging (In-Line) | 600 VAC | 3.5 A | Female Sockets, Plug | IP67 - Dust Tight, Waterproof | Backshell | 85 °C | -40 °C | 7 | 5.84 mm | 0.22 in | 5.59 mm | 0.23 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 10.44 | |
Description
General part information
16980-7S Series
7 Position Circular Connector Plug, Female Sockets Crimp
