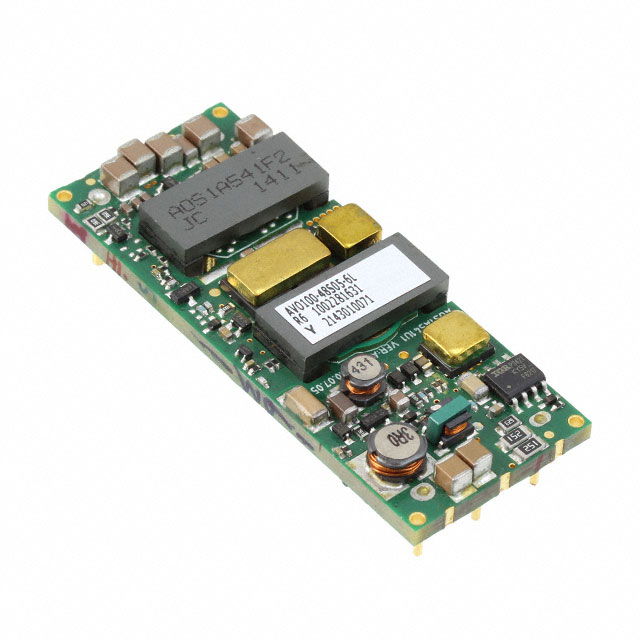

AVO100-48S05-6L
ActiveARTESYN / Advanced Energy
MODULE DC-DC 48VIN 1-OUT 5V 20A 100W 8-PIN 1/8-BRICK TRAY
Deep-Dive with AI
Search across all available documentation for this part.
AVO100-48S05-6L
ActiveARTESYN / Advanced Energy
MODULE DC-DC 48VIN 1-OUT 5V 20A 100W 8-PIN 1/8-BRICK TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AVO100-48S05-6L |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 20 A |
| Efficiency | 92.8 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module, 1/8 Brick |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [z] | 0.37 in |
| Size / Dimension [z] | 9.5 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 51.79 | |
| 5 | $ 51.39 | |||
| 10 | $ 50.98 | |||
| 25 | $ 49.37 | |||
| 40 | $ 46.94 | |||
| 224 | $ 43.70 | |||
Description
General part information
AVO100-48S05-6L
Isolated Module DC DC Converter 1 Output 5V 20A 36V - 75V Input
