8524 001100

Active

Belden Inc.

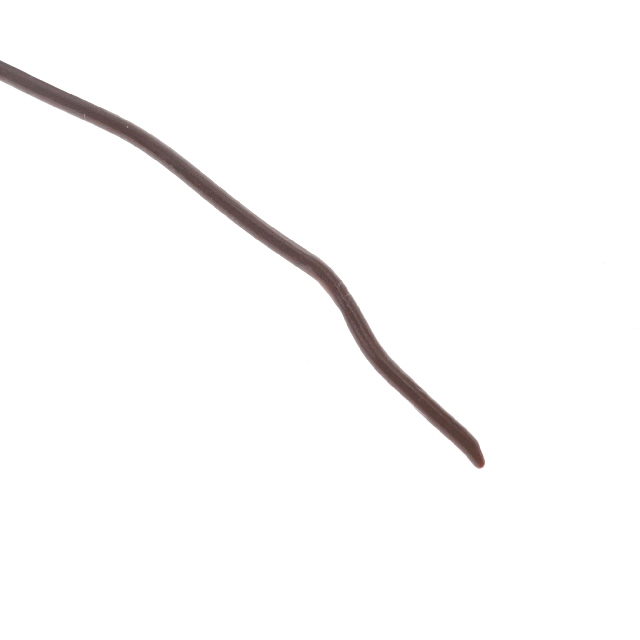

HOOK-UP STRND 22AWG BROWN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cabling Solutions for Industrial Applications

8524 001100

Active

Belden Inc.

HOOK-UP STRND 22AWG BROWN

Deep-Dive with AI

DocumentsDatasheet Cabling Solutions for Industrial Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8524 001100

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Chemical Resistant
Jacket (Insulation) Diameter [diameter]	1.63 mm
Jacket (Insulation) Diameter [diameter]	0.064 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.017 in
Jacket (Insulation) Thickness	0.43 mm
Jacket Color	Brown
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Qualification	MIL-W-76C Type MW
Voltage	1000 V
Wire Gauge	22 AWG

8524 Series

Part	Conductor Material	Wire Gauge	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Jacket Color	Qualification	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Length	Length
Belden Inc. 8524 001100	Copper Tinned	22 AWG	Chemical Resistant	-40 °C	80 C	1000 V	Brown	MIL-W-76C Type MW	30.5 m	100 ft	0.017 in	0.43 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	1.63 mm	0.064 in	Hook-Up
Belden Inc. 8524 005100	Copper Tinned	22 AWG	Chemical Resistant	-40 °C	80 C	1000 V	Green	MIL-W-76C Type MW	30.5 m	100 ft	0.017 in	0.43 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	1.63 mm	0.064 in	Hook-Up
Belden Inc. 8524 0051000	Copper Tinned	22 AWG	Chemical Resistant	-40 °C	80 C	1000 V	Green	MIL-W-76C Type MW			0.017 in	0.43 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	1.63 mm	0.064 in	Hook-Up	1000 ft	304.8 m
Belden Inc. 8524 0081000	Copper Tinned	22 AWG	Chemical Resistant	-40 °C	80 C	1000 V	Gray	MIL-W-76C Type MW			0.017 in	0.43 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	1.63 mm	0.064 in	Hook-Up	1000 ft	304.8 m
Belden Inc. 8524 002100	Copper Tinned	22 AWG	Chemical Resistant	-40 °C	80 C	1000 V	Red	MIL-W-76C Type MW	30.5 m	100 ft	0.017 in	0.43 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	1.63 mm	0.064 in	Hook-Up
Belden Inc. 8524 0071000	Copper Tinned	22 AWG	Chemical Resistant	-40 °C	80 C	1000 V	Violet	MIL-W-76C Type MW			0.017 in	0.43 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	1.63 mm	0.064 in	Hook-Up	1000 ft	304.8 m
Belden Inc. 8524 003100	Copper Tinned	22 AWG	Chemical Resistant	-40 °C	80 C	1000 V	Orange	MIL-W-76C Type MW	30.5 m	100 ft	0.017 in	0.43 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	1.63 mm	0.064 in	Hook-Up
Belden Inc. 8524 0031000	Copper Tinned	22 AWG	Chemical Resistant	-40 °C	80 C	1000 V	Orange	MIL-W-76C Type MW			0.017 in	0.43 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	1.63 mm	0.064 in	Hook-Up	1000 ft	304.8 m
Belden Inc. 8524 010100	Copper Tinned	22 AWG	Chemical Resistant	-40 °C	80 C	1000 V	Black	MIL-W-76C Type MW	30.5 m	100 ft	0.017 in	0.43 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	1.63 mm	0.064 in	Hook-Up
Belden Inc. 8524 0091000	Copper Tinned	22 AWG	Chemical Resistant	-40 °C	80 C	1000 V		MIL-W-76C Type MW			0.017 in	0.43 mm	7	30 AWG	Poly-Vinyl Chloride (PVC)	1.63 mm	0.064 in	Hook-Up	1000 ft	304.8 m
