8452 0101000

Active

Belden Inc.

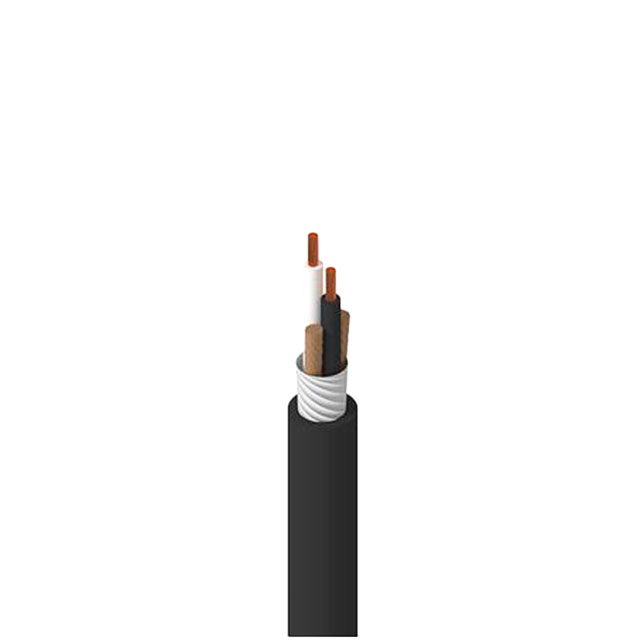

CABLE 2COND 18AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 18AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	8452 0101000

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare
Conductor Strand	34 AWG, 42
Jacket (Insulation) Diameter [diameter]	6.22 mm
Jacket (Insulation) Diameter [diameter]	0.245 in
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Ratings	UL Style SV
Usage	Cord and Cordset
Voltage	300 V
Wire Gauge	18 AWG

Part	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Strand	Jacket Color	Length	Length	Cable Type	Number of Conductors	Ratings	Jacket (Insulation) Material	Conductor Material	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Length [x]	Length [x]
Belden Inc. 8452 0101000	Ethylene Propylene Terpolymer Rubber (EPDM)	6.22 mm	0.245 in	18 AWG	34 AWG 42	Black	1000 ft	304.8 m	Multi-Conductor	2	UL Style SV	Rubber	Copper Bare	Cord and Cordset	0.94 mm	0.037 in	300 V
Belden Inc. 8452 010U500	Ethylene Propylene Terpolymer Rubber (EPDM)	6.22 mm	0.245 in	18 AWG	34 AWG 42	Black			Multi-Conductor	2	UL Style SV	Rubber	Copper Bare	Cord and Cordset	0.94 mm	0.037 in	300 V	500 '	152.4 m
Belden Inc. 8452 010500	Ethylene Propylene Terpolymer Rubber (EPDM)	6.22 mm	0.245 in	18 AWG	34 AWG 42	Black			Multi-Conductor	2	UL Style SV	Rubber	Copper Bare	Cord and Cordset	0.94 mm	0.037 in	300 V	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.34

General part information

2 Conductor Multi-Conductor Cable Black 18 AWG 1000.0' (304.8m)
