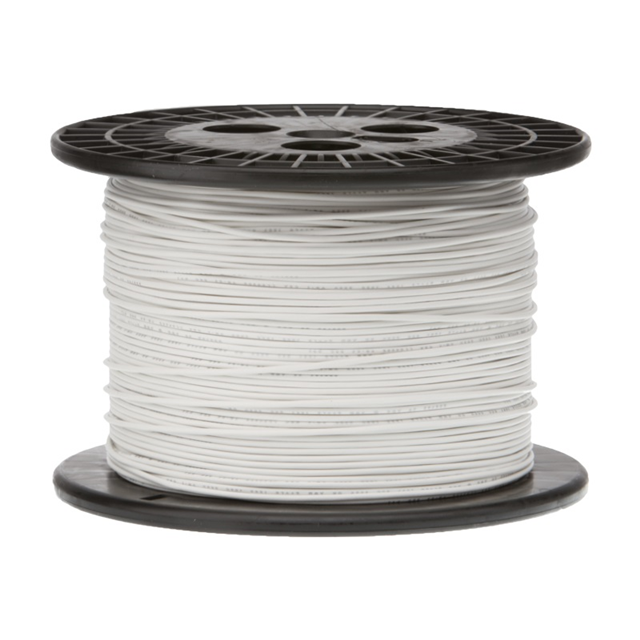

18STRWHISXL250
ActiveRemington Industries
HOOK-UP STRND 18AWG WHITE 250'
18STRWHISXL250
ActiveRemington Industries
HOOK-UP STRND 18AWG WHITE 250'
Description
General part information
18STRWHISXL250
18 AWG Hook-Up, Automotive Wire 16/30 White 60V 250.0' (76.2m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 18STRWHISXL250 |
|---|---|
| Cable Type | Hook-Up, Automotive |
| Conductor Material | Copper, Bare |
| Conductor Strand Count | 16 |
| Conductor Strand Gauge | 30 |
| Features | Abrasion Resistant, Solvent Resistant, Oil Resistant, Chemical Resistant |
| Jacket (Insulation) Diameter | 0.107 in |
| Jacket (Insulation) Material | Polyethylene (XLPE) |
| Jacket Color | White |
| Length | 250 ft |
| Operating Temperature | 125 °C |
| Voltage | 60 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
