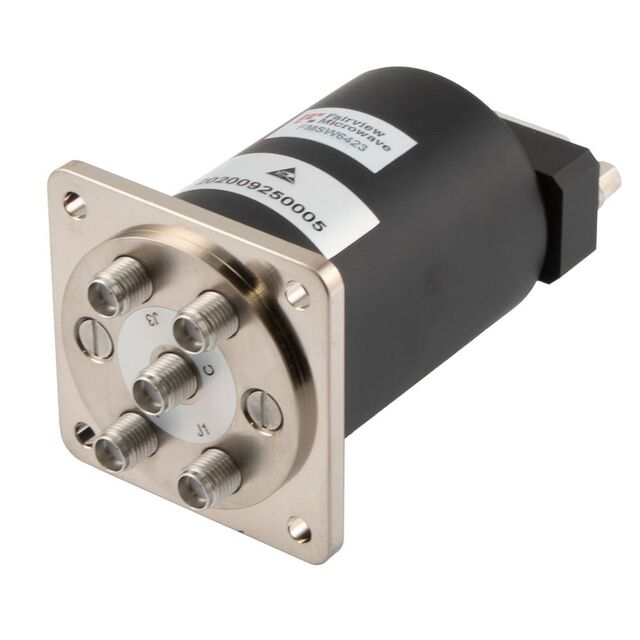

FMSW6423
ActiveFairview Microwave
EM RELAY SWITCH 26.5 GHZ 12 V SM
FMSW6423
ActiveFairview Microwave
EM RELAY SWITCH 26.5 GHZ 12 V SM
Description
General part information
FMSW6423
RF Switch IC General Purpose SP4T 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | FMSW6423 |
|---|---|
| Circuit | SP4T |
| Frequency Range (Max) | 26.5 GHz |
| Frequency Range (Min) | 0 Hz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.4 dB |
| Isolation | 80 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| RF Type | General Purpose |
| Test Frequency | 26.5 GHz |
| Voltage - Supply (Maximum) | 13 V |
| Voltage - Supply (Minimum) | 11 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
