LCCA30583-FT6
ActivePasternack
N MRA TO TNC FBH USING LC085TB,
LCCA30583-FT6
ActivePasternack
N MRA TO TNC FBH USING LC085TB,
Description
General part information
LCCA30583-FT6

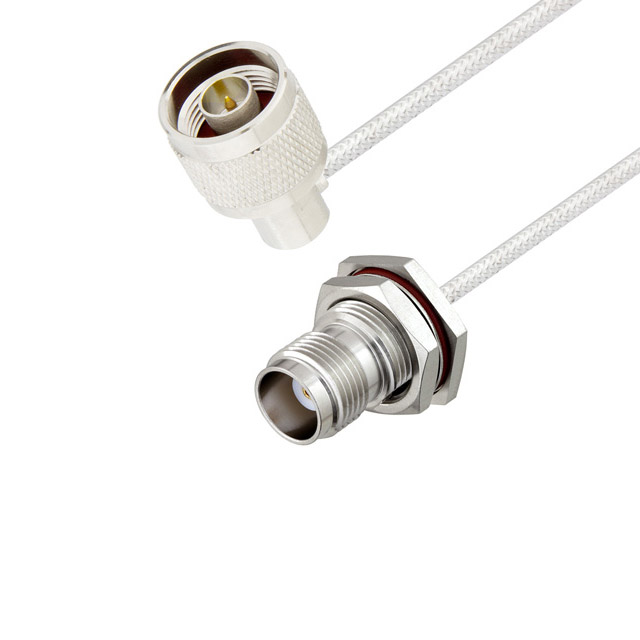

Cable Assembly Coaxial N-Type to TNC LC085TB 72.0" (1.8m) 6.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30583-FT6 |
|---|---|
| 1st Connector | N-Type Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line), Right Angle |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 72 in |
| Overall Impedance | 50 Ohms |
| Style | N-Type, TNC |
