1-2492142-0
ActiveTE Connectivity AMP Connectors

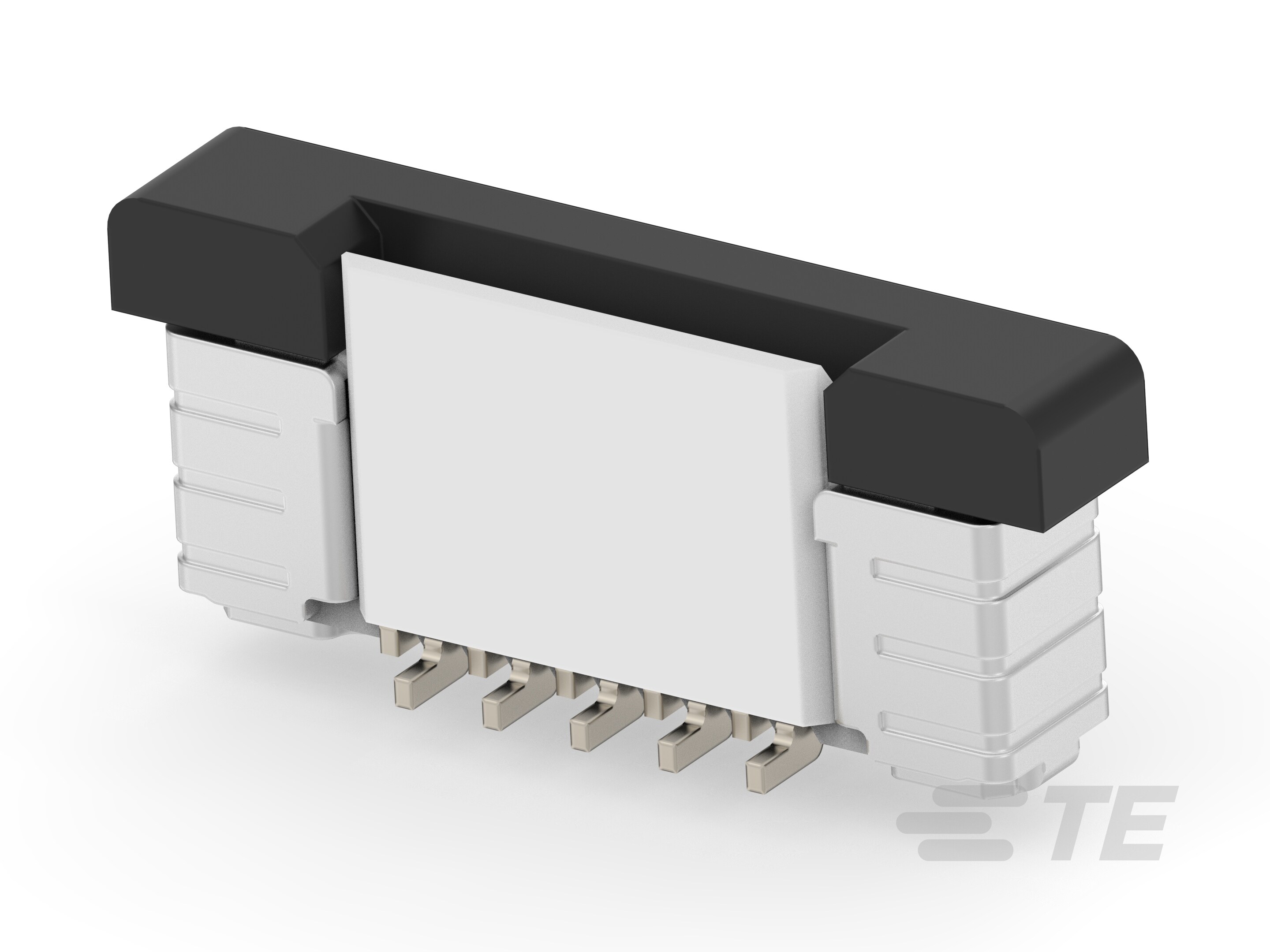

0.5 PITCH ZIF VERTICAL SMT TYPE B
1-2492142-0
ActiveTE Connectivity AMP Connectors
0.5 PITCH ZIF VERTICAL SMT TYPE B
Description
General part information
1-2492142-0
.5 mm [.02 in] Centerline, Vertical, Surface Mount, Stuffer Actuator, Gold Flash, 10 Position, FPC Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2492142-0 |
|---|---|
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Straight |
| Connector/Contact Type | 2 Sided, Contacts, Vertical |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Features | Zero Insertion Force (ZIF), Solder Retention, Pick and Place Cap |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC |
| Height Above Board | 0.173 in |
| Housing Material | Liquid Crystal Polymer, LCP |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
