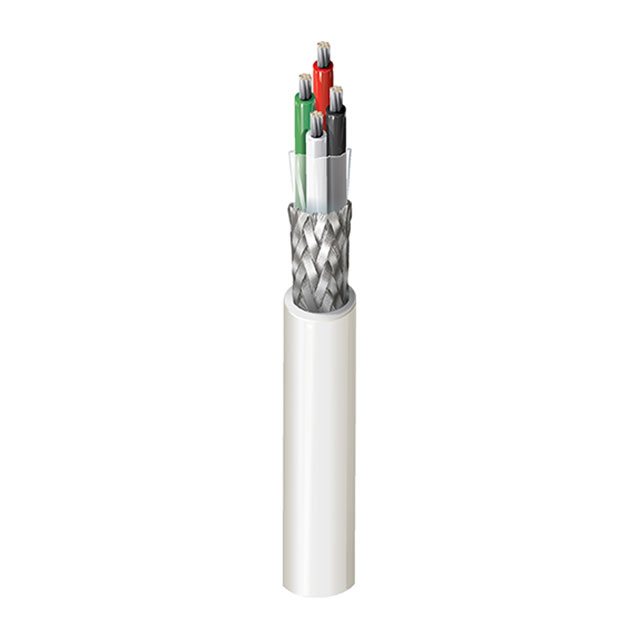

83337E 009100

Active

Belden Inc.

CABLE 3CON 16AWG WHT SHLD 100'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3CON 16AWG WHT SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	83337E 009100

Cable Type	Multi-Conductor
Conductor Insulation	Tetrafluoroethylene (TFE)
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Jacket (Insulation) Diameter [diameter]	0.209 in
Jacket (Insulation) Diameter [diameter]	5.31 mm
Jacket (Insulation) Material	Tetrafluoroethylene (TFE)
Jacket (Insulation) Thickness	0.279 mm
Jacket (Insulation) Thickness	0.011 in
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Qualification	MIL-W-16878/4 Type E
Shield Coverage	85 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Wire Gauge	16 AWG

Part	Shield Coverage	Shield Material	Length [x]	Length [x]	Wire Gauge	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Number of Conductors	Shield Type
Belden Inc. 83337E 009100	85 %	Copper Silver Coated	30.5 m	100 ft	16 AWG	Tetrafluoroethylene (TFE)	-65 ░C	200 °C	MIL-W-16878/4 Type E	Copper Silver Coated	0.209 in	5.31 mm	Tetrafluoroethylene (TFE)	0.279 mm	0.011 in	19 Strands	29 AWG	Multi-Conductor	3	Braid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable White 16 AWG Braid 100.0' (30.5m)
