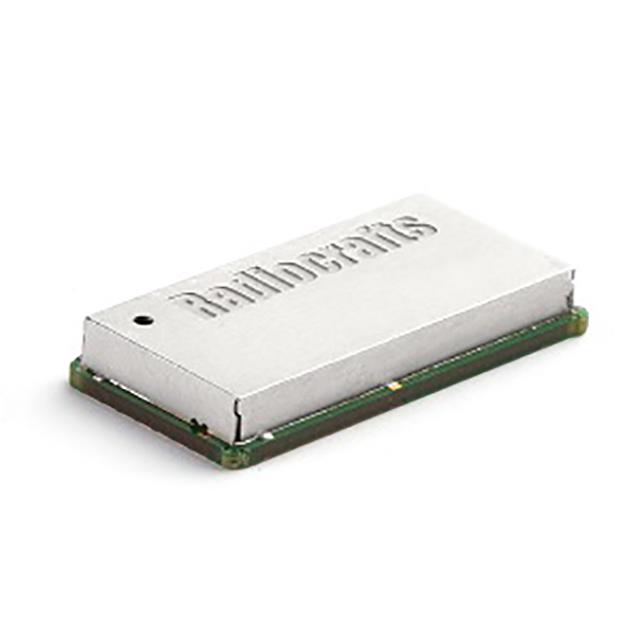

RC1180HP-MBUS3
ActiveRadiocrafts AS
RF TXRX MOD ISM<1GHZSMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RC1180HP-MBUS3
ActiveRadiocrafts AS
RF TXRX MOD ISM<1GHZSMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RC1180HP-MBUS3 | RC1180 Series |
|---|---|---|
| - | - | |
| Antenna Type | Antenna Not Included | Antenna Not Included, Castellation |
| Applications | - | General Purpose |
| Current - Receiving | 27 mA | 24 - 27 mA |
| Current - Transmitting | 120 mA | 37 - 120 mA |
| Data Rate | 100 Kbps | 100 Kbps |
| For Use With/Related Products | - | RC1180HP |
| Frequency | - | 868 - 869.525 MHz |
| Frequency [Max] | 870 MHz | 870 MHz |
| Frequency [Min] | 868 MHz | 868 MHz |
| Function | - | Transceiver, ZigBee™ |
| Interface | - | USB |
| Modulation | - | GFSK |
| Modulation or Protocol | - | 802.15.4 Zigbee™ |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Module | Module |
| Power - Output | 27 dBm | 10 - 27 dBm |
| Protocol | Wireless M-Bus | Wireless M-Bus, RC232 |
| RF Family/Standard | General ISM < 1GHz | General ISM < 1GHz |
| Sensitivity | -110 dBm | -110 - -106 dBm |
| Serial Interfaces | UART | UART |
| Supplied Contents | - | Power Supply, Cable(s), Board(s), Accessories |
| Utilized IC / Part | - | CC1110 |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 2 V | 2 V |
RC1180 Series
KNX 868 MHZ USB
| Part | Function | Interface | Modulation or Protocol | Frequency | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Frequency [Max] | Frequency [Min] | Serial Interfaces | Antenna Type | Sensitivity | RF Family/Standard | Package / Case | Current - Receiving | Mounting Type | Current - Transmitting | Data Rate | Protocol | Power - Output | Modulation | Utilized IC / Part | Supplied Contents | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiocrafts AS RC1180-KNX2-USB | Transceiver, ZigBee™ | USB | 802.15.4 Zigbee™ | 868 MHz | General Purpose | |||||||||||||||||||||
Radiocrafts AS RC1180-MBUS3-USB | ||||||||||||||||||||||||||
Radiocrafts AS RC1180HP-MBUS3 | 85 °C | -40 °C | 3.6 V | 2 V | 870 MHz | 868 MHz | UART | Antenna Not Included | -110 dBm | General ISM < 1GHz | Module | 27 mA | Surface Mount | 120 mA | 100 Kbps | Wireless M-Bus | 27 dBm | |||||||||
Radiocrafts AS RC1180-RC232 | 85 °C | -40 °C | 3.6 V | 2 V | 870 MHz | 868 MHz | UART | Antenna Not Included, Castellation | -110 dBm | General ISM < 1GHz | Module | 24 mA | Surface Mount | 37 mA | 100 Kbps | RC232 | 10 dBm | GFSK | CC1110 | |||||||
Radiocrafts AS RC1180HP-MBUS3-DK | 869.525 MHz | Accessories, Board(s), Cable(s), Power Supply | RC1180HP | |||||||||||||||||||||||
Radiocrafts AS RC1180-RC232-USB | Transceiver, ZigBee™ | USB | 802.15.4 Zigbee™ | 868 MHz | General Purpose | |||||||||||||||||||||
Radiocrafts AS RC1180-MPC1 | 868 MHz | 85 °C | -40 °C | 3.6 V | 2 V | UART | Antenna Not Included, Castellation | -106 dBm | General ISM < 1GHz | Module | 24 mA | Surface Mount | 37 mA | 100 Kbps | Wireless M-Bus | 10 dBm | CC1110 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 21.11 | |
| 10 | $ 19.49 | |||
| 25 | $ 17.86 | |||
| 100 | $ 16.51 | |||
| 250 | $ 15.70 | |||
| 500 | $ 14.62 | |||
| Digi-Reel® | 1 | $ 21.11 | ||
| 10 | $ 19.49 | |||
| 25 | $ 17.86 | |||
| 100 | $ 16.51 | |||
| 250 | $ 15.70 | |||
| 500 | $ 14.62 | |||
| Tape & Reel (TR) | 1000 | $ 14.08 | ||
Description
General part information
RC1180 Series
General ISM < 1GHz Wireless M-Bus Transceiver Module 868MHz ~ 870MHz Antenna Not Included Surface Mount
