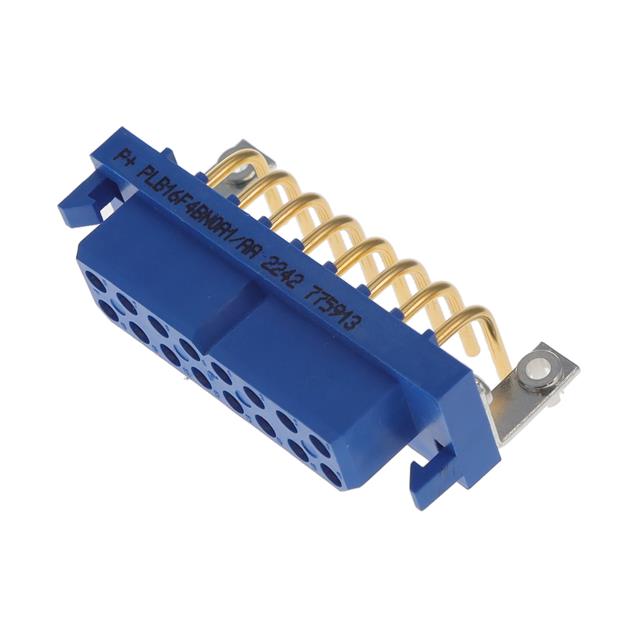

PLB16F4BN0A1/AA
ActiveMcGill Microwave Systems
RECT PWR CONN, R/A RCPT, 16POS, 2ROW, TH ROHS COMPLIANT: YES
PLB16F4BN0A1/AA
ActiveMcGill Microwave Systems
RECT PWR CONN, R/A RCPT, 16POS, 2ROW, TH ROHS COMPLIANT: YES
Description
General part information
PLB16F4BN0A1/AA
16 Connector Receptacle, Female Sockets Through Hole, Right Angle Blue Power
Technical Specifications
Parameters and characteristics for this part
| Specification | PLB16F4BN0A1/AA |
|---|---|
| Color | Blue |
| Connector Style | Power |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Features | Board Lock |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.197 in |
| Termination | Solder |
| Voltage Rating | 600 V |
