1766200-1
ActiveTE Connectivity AMP Connectors
284-0472-15000E=TA CE STRDDLMN
1766200-1
ActiveTE Connectivity AMP Connectors
284-0472-15000E=TA CE STRDDLMN
Description
General part information
1766200-1

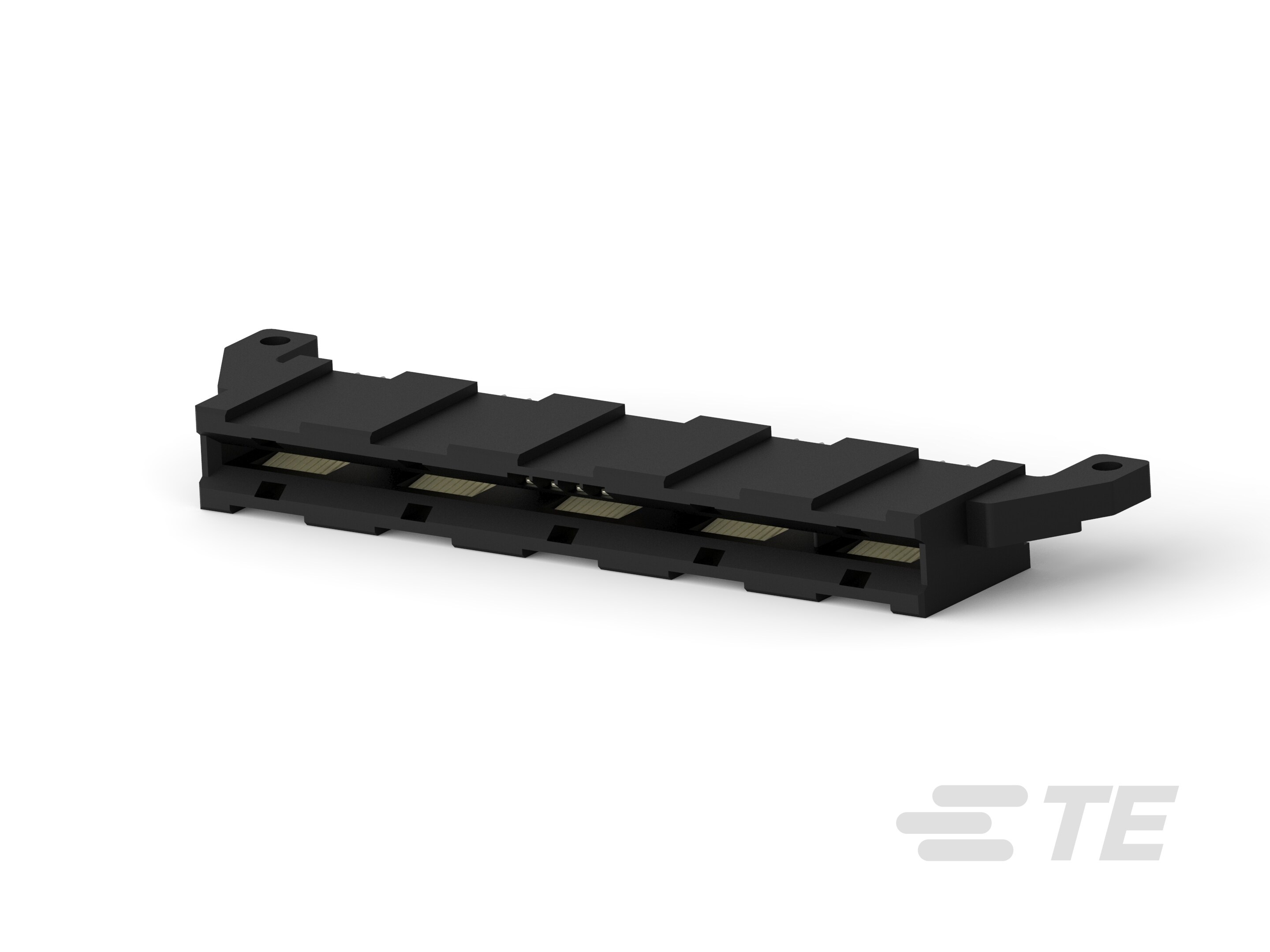

Board-to-Board, 12 Position, 2.54 mm [.1 in] Centerline, Black, Fully Loaded, Receptacle, Straddle Mount, CROWN EDGE, Standard Edge Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1766200-1 |
|---|---|
| Card Thickness | 0.063 in |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Copper Alloy |
| Gender | Female |
| Mounting Type | Straddle Mount, Board Edge |
| Number of Rows | 2 |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
