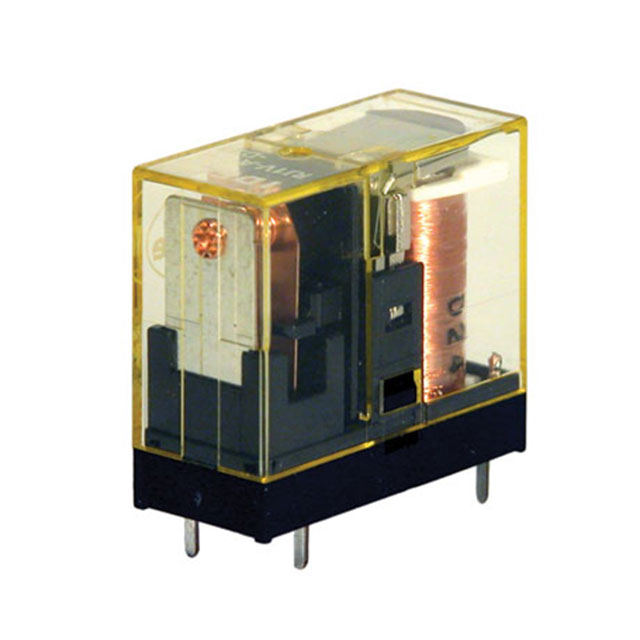

RJ1V-A-D24
ActiveIDEC Corporation
RELAY GEN PURPOSE SPST 12A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RJ1V-A-D24
ActiveIDEC Corporation
RELAY GEN PURPOSE SPST 12A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RJ1V-A-D24 | RJ1V-A Series |
|---|---|---|
| Approval Agency | CE, VDE, cURus, CSA | CE, VDE, cURus, CSA |
| Coil Current | 22.1 mA | 3.7 - 106 mA |
| Coil Resistance | 1.08 kOhms | 1.08 - 271 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 5 - 240 VAC |
| Coil Voltage | - | 110 VDC |
| Coil Voltage | - | 100 VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi), Silver Tin Indium (AgSnIn) |
| Contact Rating (Current) | 12 A | 12 - 16 A |
| Mounting Type | Through Hole | Through Hole |
| Must Operate Voltage | 16.8 VDC | 3.5 - 192 VAC |
| Must Release Voltage | 2.4 VDC | 0.5 - 72 VAC |
| Operate Time | 15 ms | 15 ms |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 10 ms | 10 ms |
| Seal Rating | - | Sealed - Flux Protection |
| Switching Voltage | 250 VAC | 125 - 250 VAC |
| Termination Style | PC Pin | PC Pin |
RJ1V-A Series
POWER RELAY, SPST-NO, 24 VAC, 12 A, RJ SERIES, THROUGH HOLE, NON LATCHING
| Part | Approval Agency | Switching Voltage | Must Operate Voltage | Termination Style | Operate Time | Relay Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Seal Rating | Contact Rating (Current) | Mounting Type | Contact Form | Coil Current | Coil Type | Coil Resistance | Must Release Voltage | Release Time | Coil Voltage | Coil Voltage [Max] | Coil Voltage [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDEC Corporation RJ1V-A-A24 | CE, CSA, cURus, VDE | 125 VDC, 250 VAC | 19.2 VAC | PC Pin | 15 ms | General Purpose | Silver Nickel (AgNi) | -40 °C | 70 °C | Sealed - Flux Protection | 12 A | Through Hole | SPST-NO (1 Form A) | 37.5 mA | Non Latching | 243 Ohms | 7.2 VAC | 10 ms | 24 VAC | ||
IDEC Corporation RJ1V-AH-A120 | CE, CSA, cURus, VDE | 125 VDC, 250 VAC | 96 VAC | PC Pin | 15 ms | General Purpose | Silver Tin Indium (AgSnIn) | -40 °C | 70 °C | 12 A | Through Hole | SPST-NO (1 Form A) | 7.5 mA | Non Latching | 6.4 kOhms | 36 VAC | 10 ms | 120 VAC | |||
IDEC Corporation RJ1V-A-D6 | CE, CSA, cURus, VDE | 125 VDC, 250 VAC | 4.2 VDC | PC Pin | 15 ms | General Purpose | Silver Nickel (AgNi) | -40 °C | 70 °C | Sealed - Flux Protection | 12 A | Through Hole | SPST-NO (1 Form A) | 88.3 mA | Non Latching | 67.9 Ohms | 0.6 VDC | 10 ms | |||
IDEC Corporation RJ1V-A-D100 | CE, CSA, cURus, VDE | 125 VDC, 250 VAC | PC Pin | 15 ms | General Purpose | Silver Nickel (AgNi) | -40 °C | 70 °C | Sealed - Flux Protection | 12 A | Through Hole | SPST-NO (1 Form A) | 5.3 mA | Non Latching | 18.87 kOhms | 10 ms | 110 VDC | 100 VDC | |||
IDEC Corporation RJ1V-AH-D5 | CE, CSA, cURus, VDE | 125 VDC, 250 VAC | 3.5 VDC | PC Pin | 15 ms | General Purpose | Silver Tin Indium (AgSnIn) | -40 °C | 70 °C | 12 A | Through Hole | SPST-NO (1 Form A) | 106 mA | Non Latching | 47.2 Ohms | 0.5 VDC | 10 ms | 5 VDC | |||
IDEC Corporation RJ1V-A-D24 | CE, CSA, cURus, VDE | 250 VAC | 16.8 VDC | PC Pin | 15 ms | General Purpose | Silver Nickel (AgNi) | -40 °C | 70 °C | 12 A | Through Hole | SPST-NO (1 Form A) | 22.1 mA | Non Latching | 1.08 kOhms | 2.4 VDC | 10 ms | 24 VDC | |||
IDEC Corporation RJ1V-AH-D100 | CE, CSA, cURus, VDE | 125 VDC, 250 VAC | PC Pin | 15 ms | General Purpose | Silver Nickel (AgNi) | -40 °C | 70 °C | Sealed - Flux Protection | 16 A | Through Hole | SPST-NO (1 Form A) | 5.3 mA | Non Latching | 18.87 kOhms | 10 ms | 110 VDC | 100 VDC | |||
IDEC Corporation RJ1V-AH-A240 | CE, CSA, cURus, VDE | 125 VDC, 250 VAC | 192 VAC | PC Pin | 15 ms | General Purpose | Silver Nickel (AgNi) | -40 °C | 70 °C | Sealed - Flux Protection | 16 A | Through Hole | SPST-NO (1 Form A) | 3.7 mA | Non Latching | 25.57 kOhms | 72 VAC/DC | 10 ms | 240 VAC | ||
IDEC Corporation RJ1V-A-A240 | CE, CSA, cURus, VDE | 125 VDC, 250 VAC | 192 VAC | PC Pin | 15 ms | General Purpose | Silver Nickel (AgNi) | -40 °C | 70 °C | Sealed - Flux Protection | 12 A | Through Hole | SPST-NO (1 Form A) | 3.7 mA | Non Latching | 25.57 kOhms | 72 VAC/DC | 10 ms | 240 VAC | ||
IDEC Corporation RJ1V-AH-A24 | CE, CSA, cURus, VDE | 125 VDC, 250 VAC | 19.2 VAC | PC Pin | 15 ms | General Purpose | Silver Nickel (AgNi) | -40 °C | 70 °C | Sealed - Flux Protection | 16 A | Through Hole | SPST-NO (1 Form A) | 37.5 mA | Non Latching | 243 Ohms | 7.2 VAC | 10 ms | 24 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.44 | |
| 10 | $ 3.88 | |||
| 25 | $ 3.67 | |||
| 50 | $ 3.53 | |||
Description
General part information
RJ1V-A Series
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
