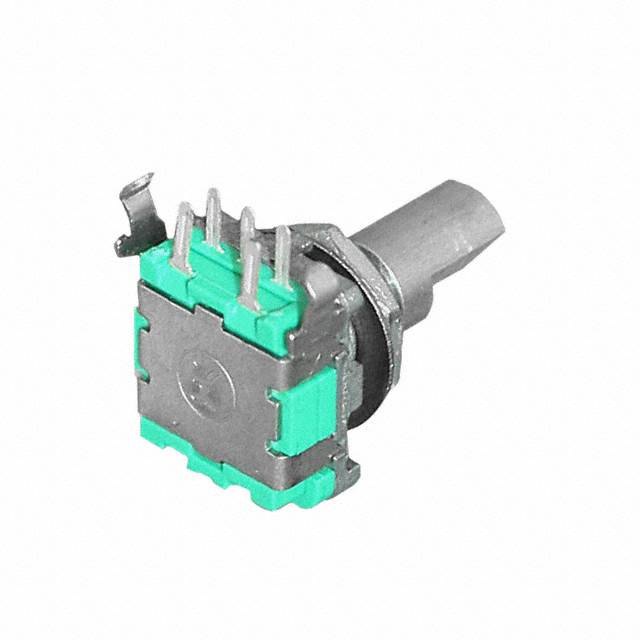

EN11-VSM0AF20

Active

TT Electronics/BI

ROTARY ENCODER MECHANICAL 20PPR

Search across all available documentation for this part.

Active

TT Electronics/BI

ROTARY ENCODER MECHANICAL 20PPR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Mechanical 20 Quadrature (Incremental) Right Angle

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EN11-VSM0AF20	EN11 Series

Actuator Type	Flatted End	Flatted End, Knurled End
Actuator Type [diameter]	6 mm	6 mm
Built in Switch	True	False, True
Detent	False	True, False
Encoder Type	Mechanical	Mechanical
Mounting Type	PCB Through Hole, Panel	PCB Through Hole, Panel
Orientation	Right Angle	Right Angle, Vertical
Output Type	Quadrature (Incremental)	Quadrature (Incremental)
Pulses per Revolution	20	15 - 20
Rotational Life (Cycles Min) [Min]	30K	30K
Termination Style	PC Pin	PC Pin

ROTARY ENCODER MECHANICAL 20PPR

Part	Pulses per Revolution	Output Type	Encoder Type	Termination Style	Orientation	Actuator Type [diameter]	Actuator Type	Rotational Life (Cycles Min) [Min]	Mounting Type
TT Electronics/BI EN11-VNM1AF15	20	Quadrature (Incremental)	Mechanical	PC Pin	Right Angle	6 mm	Flatted End	30K
TT Electronics/BI EN11-HSM3AF20	15	Quadrature (Incremental)	Mechanical	PC Pin	Vertical	6 mm	Flatted End	30K
TT Electronics/BI EN11-HSM3BF15	15	Quadrature (Incremental)	Mechanical	PC Pin	Vertical	6 mm	Flatted End	30K
TT Electronics/BI EN11-HSB1AF30	20	Quadrature (Incremental)	Mechanical	PC Pin	Vertical	6 mm	Flatted End	30K
TT Electronics/BI EN11-HSM1BQ30	20	Quadrature (Incremental)	Mechanical	PC Pin	Vertical	6 mm	Knurled End	30K
TT Electronics/BI EN11-HSM0BQ20	20	Quadrature (Incremental)	Mechanical	PC Pin	Vertical	6 mm	Knurled End	30K
TT Electronics/BI EN11-HSM1AQ20	20	Quadrature (Incremental)	Mechanical	PC Pin	Vertical	6 mm	Knurled End	30K
TT Electronics/BI EN11-VSM0BF20	20	Quadrature (Incremental)	Mechanical	PC Pin	Right Angle	6 mm	Flatted End	30K
TT Electronics/BI EN11-VSB3AF20	20	Quadrature (Incremental)	Mechanical	PC Pin	Right Angle	6 mm	Flatted End	30K
TT Electronics/BI EN11-HSM1AF15	20	Quadrature (Incremental)	Mechanical	PC Pin	Vertical	6 mm	Flatted End	30K	Panel, PCB Through Hole
