031-029-000=TAB,187X020,STDSMZ-4-1601013-1

4-1601013-1

Active
TE Connectivity AMP Connectors

CONN MAG TERM 18-34AWG QC 0.187

Find alt
031-029-000=TAB,187X020,STDSMZ-4-1601013-1

4-1601013-1

Active
TE Connectivity AMP Connectors

CONN MAG TERM 18-34AWG QC 0.187

Find alt

Description

General part information

4-1601013-1

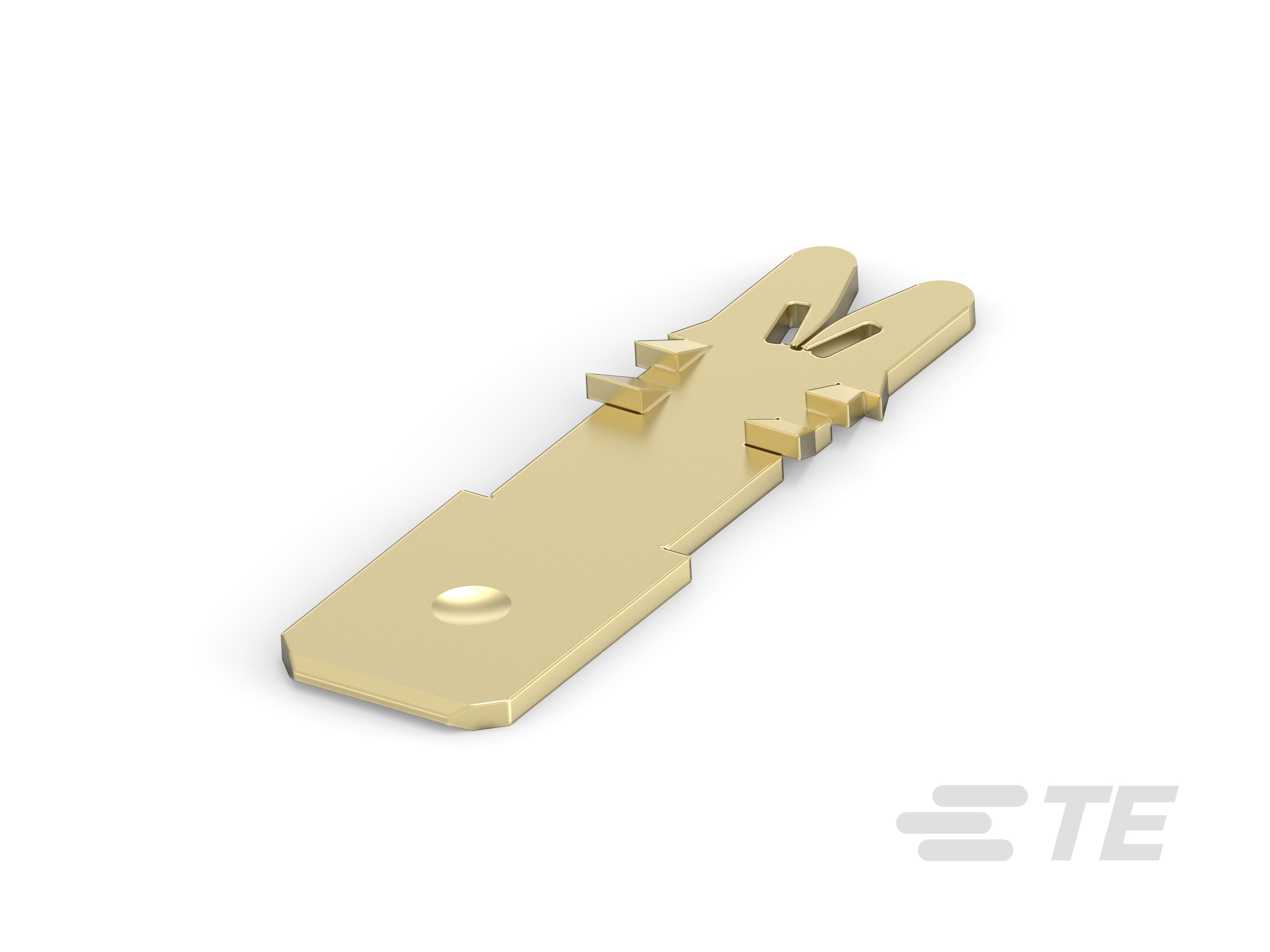

Tab, 4.75 mm [.02 in] Tab Width, .16 – 1.02 mm Magnet Wire, 34 – 18 AWG Magnet Wire, Insulation Displacement (IDC), SIAMEZE, Magnet Wire Terminals

Technical Specifications

Parameters and characteristics for this part

Specification4-1601013-1
FeaturesQC .187
StyleSiameze
Terminal TypeIDC Terminal
TerminationQuick Connect
Wire Gauge (AWG) (Max)34 AWG
Wire Gauge (AWG) (Min)18 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
