Description
General part information

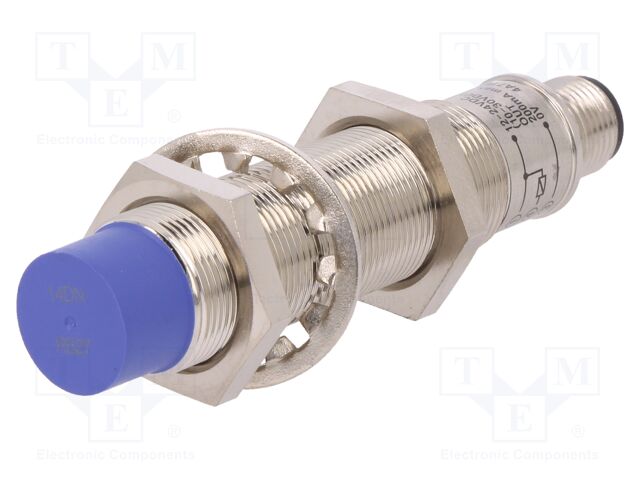

PRDCML18-14DN
SENSOR: INDUCTIVE; OUT: NPN / NO; 0÷14MM; 10÷30VDC; M18; IP67; 200MA
Technical Specifications
Parameters and characteristics for this part
| Specification | PRDCML18-14DN |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | 3-Wire, NPN-NO |
| Package / Case | Cylinder, Threaded - M18 |
| Response Frequency | 200 Hz |
| Sensing Distance | 0.551 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
