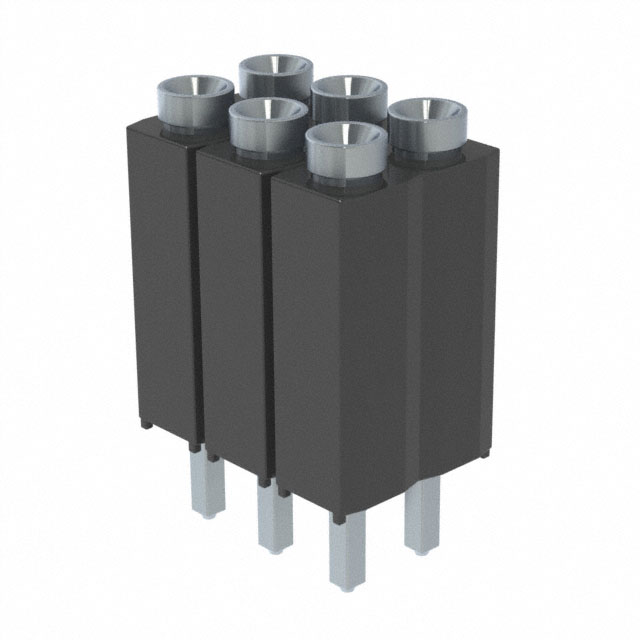

ESD-103-T-23

Active

Samtec Inc.

CONN SOCKET 6POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ESD-103-T-23

Active

Samtec Inc.

CONN SOCKET 6POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESD-103-T-23

Connector Type	Elevated Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.3 in
Insulation Height [z]	7.62 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

ESD-103 Series

Part	Connector Type	Contact Material	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Type	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions	Number of Rows	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Termination	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]
Samtec Inc. ESD-103-T-05	Elevated Socket	Beryllium Copper	Circular	2.54 mm	0.1 in	Through Hole	Female Socket	Black	0.165 in	4.19 mm	0.5 in	12.7 mm	Gold	0.1 in	2.54 mm	UL94 V-0	6	2	All	10 çin	0.25 çm	Push-Pull	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Tin
Samtec Inc. ESD-103-TT-07	Elevated Socket	Beryllium Copper	Circular	2.54 mm	0.1 in	Through Hole	Female Socket	Black			0.4 in	10.16 mm		0.1 in	2.54 mm	UL94 V-0	6	2	All			Push-Pull	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Tin	0.265 in	6.73 mm
Samtec Inc. ESD-103-G-04	Elevated Socket	Beryllium Copper	Circular	2.54 mm	0.1 in	Through Hole	Female Socket	Black			0.4 in	10.16 mm	Gold	0.1 in	2.54 mm	UL94 V-0	6	2	All	10 çin	0.25 çm	Push-Pull	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold	0.253 in	6.43 mm	10 çin	0.25 çm
Samtec Inc. ESD-103-T-23	Elevated Socket	Beryllium Copper	Circular	2.54 mm	0.1 in	Through Hole	Female Socket	Black					Gold	0.1 in	2.54 mm	UL94 V-0	6	2	All	10 çin	0.25 çm	Push-Pull	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Tin	0.115 in	2.92 mm			0.3 in	7.62 mm
Samtec Inc. ESD-103-G-08	Elevated Socket	Beryllium Copper	Circular	2.54 mm	0.1 in	Through Hole	Female Socket	Black					Gold	0.1 in	2.54 mm	UL94 V-0	6	2	All	10 çin	0.25 çm	Push-Pull	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold	0.365 in	9.27 mm	10 çin	0.25 çm	0.3 in	7.62 mm
Samtec Inc. ESD-103-G-24	Elevated Socket	Beryllium Copper	Circular	2.54 mm	0.1 in	Through Hole	Female Socket	Black			0.4 in	10.16 mm	Gold	0.1 in	2.54 mm	UL94 V-0	6	2	All	10 çin	0.25 çm	Push-Pull	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold	0.115 in	2.92 mm	10 çin	0.25 çm
Samtec Inc. ESD-103-G-03	Elevated Socket	Beryllium Copper	Circular	2.54 mm	0.1 in	Through Hole	Female Socket	Black					Gold	0.1 in	2.54 mm	UL94 V-0	6	2	All	10 çin	0.25 çm	Push-Pull	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold	0.153 in	3.89 mm	10 çin	0.25 çm	0.3 in	7.62 mm
Samtec Inc. ESD-103-T-25	Elevated Socket	Beryllium Copper	Circular	2.54 mm	0.1 in	Through Hole	Female Socket	Black	0.165 in	4.19 mm	0.5 in	12.7 mm	Gold	0.1 in	2.54 mm	UL94 V-0	6	2	All	10 çin	0.25 çm	Push-Pull	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Tin
Samtec Inc. ESD-103-G-06	Elevated Socket	Beryllium Copper	Circular	2.54 mm	0.1 in	Through Hole	Female Socket	Black					Gold	0.1 in	2.54 mm	UL94 V-0	6	2	All	10 çin	0.25 çm	Push-Pull	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold	0.215 in	5.46 mm	10 çin	0.25 çm	0.3 in	7.62 mm
Samtec Inc. ESD-103-TT-05	Elevated Socket	Beryllium Copper	Circular	2.54 mm	0.1 in	Through Hole	Female Socket	Black	0.165 in	4.19 mm	0.5 in	12.7 mm		0.1 in	2.54 mm	UL94 V-0	6	2	All			Push-Pull	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.02

Description

General part information

ESD-103 Series

6 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold
