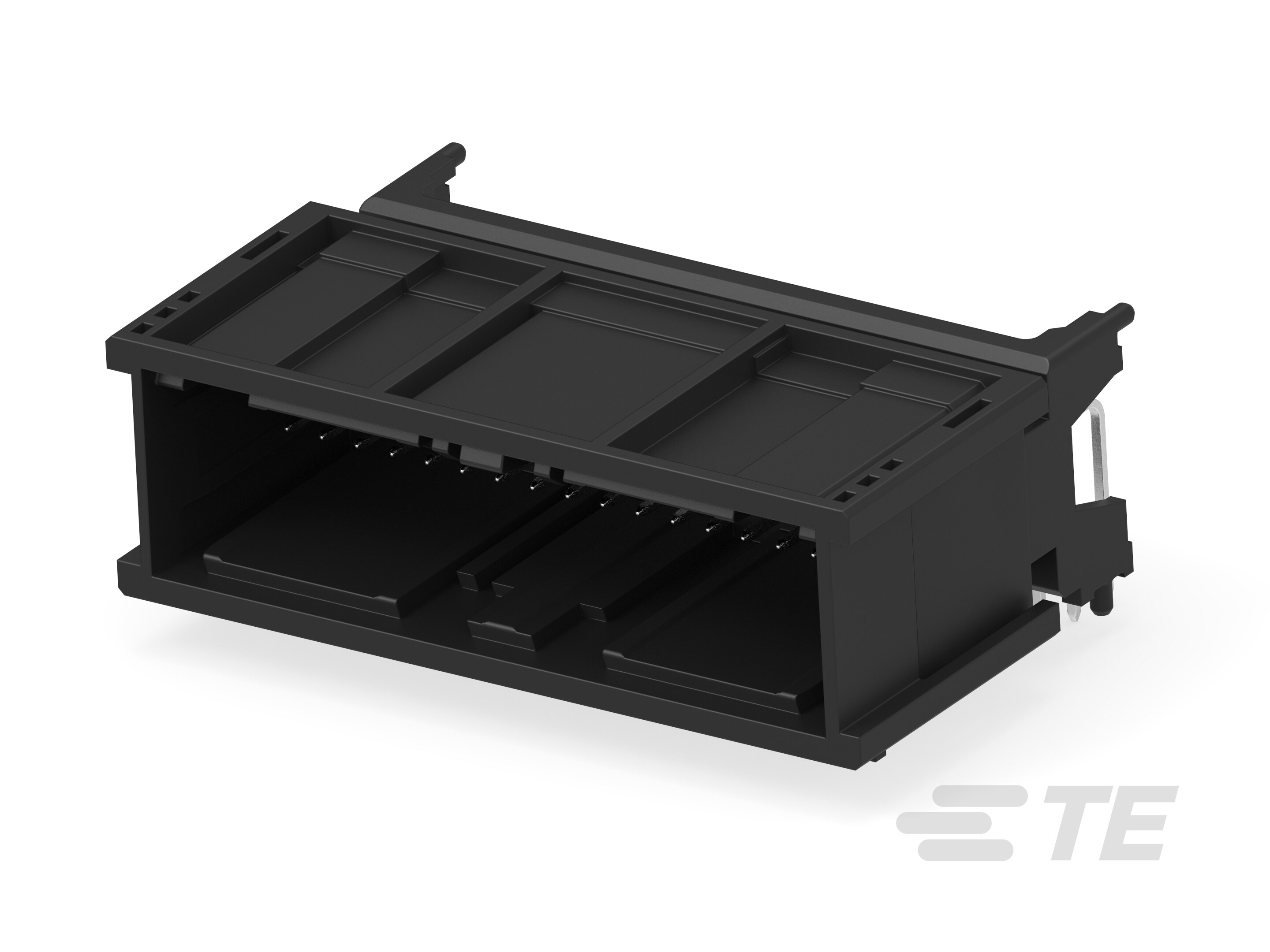

4-2177419-3
ActiveTE Connectivity AMP Connectors
32POS,TAB 0.5X0.4,HEADER ASSY,CODA
4-2177419-3
ActiveTE Connectivity AMP Connectors
32POS,TAB 0.5X0.4,HEADER ASSY,CODA
Description
General part information
4-2177419-3
Horizontal, Wire-to-Board, 32 Position, 2 Rows, 1.8mm [.071in] Centerline, Tin (Sn), Printed Circuit Board, Signal, Black, Board Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 4-2177419-3 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Current Rating | 1.5 A |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.496 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 32 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.071 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 12 V |
