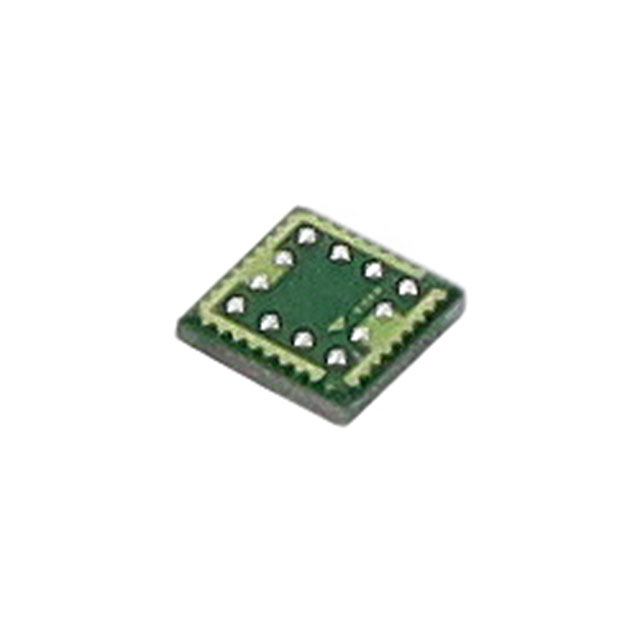

AFBR-S4K33C0115L
ObsoleteBroadcom Limited
SENSOR PHOTODIODE 430NM 12WFBGA
AFBR-S4K33C0115L
ObsoleteBroadcom Limited
SENSOR PHOTODIODE 430NM 12WFBGA
Description
General part information
AFBR-S4K33C0115L
Photodiode 430nm 12-WFBGA, CSPBGA
Technical Specifications
Parameters and characteristics for this part
| Specification | AFBR-S4K33C0115L |
|---|---|
| Active Area | 9 mm² |
| Current - Dark (Typ) (Value 1) | 14.1 nA |
| Current - Dark (Typ) (Value 2) | 59 nA |
| Current - Dark (Typ) (Value 3) | 114 nA |
| Diode Type | Avalanche |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | CSPBGA, 12-WFBGA |
| Voltage - DC Reverse (Vr) (Max) | 30.25 V |
| Wavelength | 430 nm |
