SN471M010ST
ObsoleteCornell Dubilier Knowles

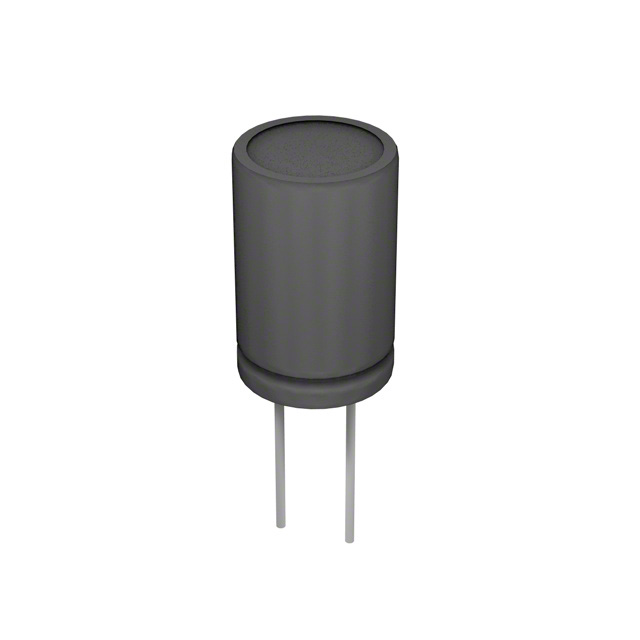

CAP ALUM 470UF 20% 10V RADIAL TH
SN471M010ST
ObsoleteCornell Dubilier Knowles
CAP ALUM 470UF 20% 10V RADIAL TH
Description
General part information
SN471M010ST
470 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 560mOhm @ 120Hz 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | SN471M010ST |
|---|---|
| Applications | General Purpose |
| Capacitance | 470 µF |
| ESR (Equivalent Series Resistance) | 560 mOhm |
| Height - Seated (Max) | 0.787 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Bi-Polar |
| Ripple Current | 470 mA |
| Size / Dimension Diameter | 0.512 in |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
