EGG.00.304.CLL
ActiveLEMO

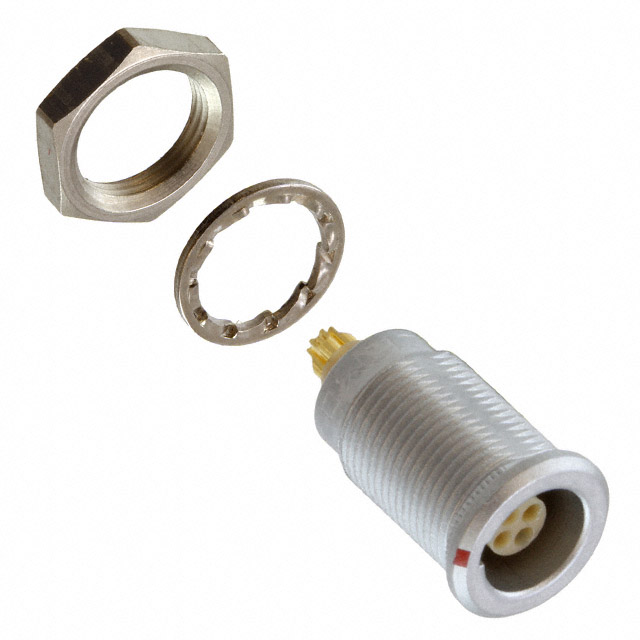

CONN RCPT FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
EGG.00.304.CLL
ActiveLEMO
CONN RCPT FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EGG.00.304.CLL | EGG.00.304 Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Female Sockets, Insert |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 2 A | 2 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | - | Insert Only, Requires Shell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 304 | 304 |
| Shielding | Shielded | Shielded |
| Termination | - | Crimp, Solder |
EGG.00.304 Series
CONN RCPT FMALE 4POS GOLD CRIMP
| Part | Current Rating (Amps) | Shell Finish | Number of Positions | Contact Material | Mounting Feature | Fastening Type | Primary Material | Material Flammability Rating | Orientation | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Shell Size - Insert | Ingress Protection | Shell Material | Contact Finish - Mating | Insert Material | Shielding | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EGG.00.304.CYM | 2 A | Chrome | 4 | Bronze | Bulkhead - Rear Side Nut | Push-Pull | Metal | UL94 V-0 | G | 59 Áin | 1.5 Ám | Crimp | 304 | IP50 | Brass | Gold | Polyetheretherketone (PEEK) | Shielded | Receptacle, Female Sockets | -55 °C | 250 °C | Silver | ||
LEMO EGG.00.304.CLN | 2 A | Chrome | 4 | Bronze | Bulkhead - Rear Side Nut | Push-Pull | Metal | UL94 V-0 | G | 59 Áin | 1.5 Ám | Solder | 304 | IP50 | Brass | Gold | Polyetheretherketone (PEEK) | Shielded | Receptacle, Female Sockets | -55 °C | 250 °C | Silver | Panel Mount, Through Hole | |
LEMO EGG.00.304.CLL | 2 A | Chrome | 4 | Bronze | Bulkhead - Rear Side Nut | Push-Pull | Metal | UL94 V-0 | G | 59 Áin | 1.5 Ám | 304 | IP50 | Brass | Gold | Polyetheretherketone (PEEK) | Shielded | Receptacle, Female Sockets | -55 °C | 250 °C | Silver | |||
LEMO EGG.00.304.ZLL | 2 A | 4 | Bronze | UL94 V-0 | G | 59 Áin | 1.5 Ám | 304 | IP50 | Gold | Polyetheretherketone (PEEK) | Shielded | Female Sockets, Insert | -55 °C | 250 °C | Insert Only, Requires Shell |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.14 | |
| 10 | $ 27.15 | |||
| 25 | $ 24.61 | |||
| 50 | $ 22.90 | |||
| 100 | $ 21.35 | |||
| 250 | $ 19.52 | |||
| 500 | $ 18.39 | |||
Description
General part information
EGG.00.304 Series
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
