Description
General part information
778194-01

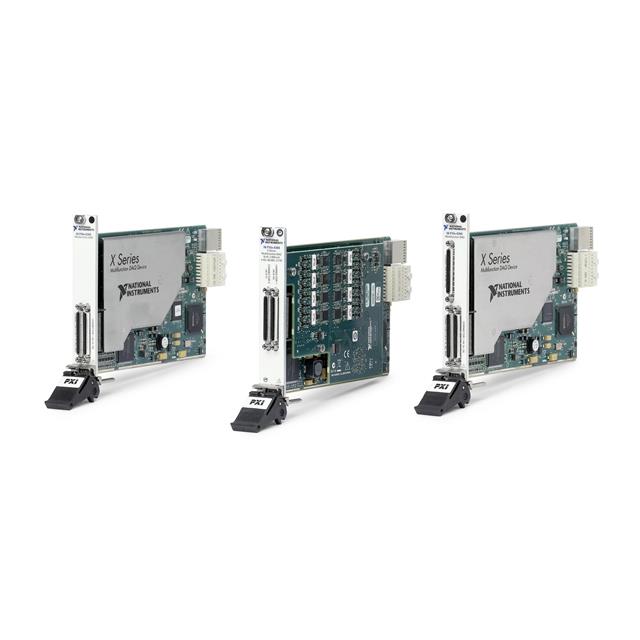

Multifunction I/O DAQ Device PXI SCSI
Technical Specifications
Parameters and characteristics for this part
| Specification | 778194-01 |
|---|---|
| Analog Outputs | 2 |
| Bidirectional Channels | 8 |
| Bus Connection | PXI |
| Counter/Timers | 2 |
| Digital Outputs | 8 |
| Front Connection | SCSI |
| Function | Multifunction I/O |
| Input Resolution | 12 Bits |
| Input Types | Analog (Differential), Digital |
| Input Voltage (Max) | 42 V |
| Input Voltage (Min) | -42 V |
| Number of Analog Inputs (Differential) | 4 |
| Number of Digital Inputs | 8 |
| Number of Outputs | 10 |
| Output Resolution | 12 Bits |
| Output Type | Digital, Analog |
| Output Voltage Range (Max) | 10 V |
| Output Voltage Range (Min) | -10 V |
| Sampling Rate (Per Second) | 10 MHz |
| Type | DAQ Device |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
