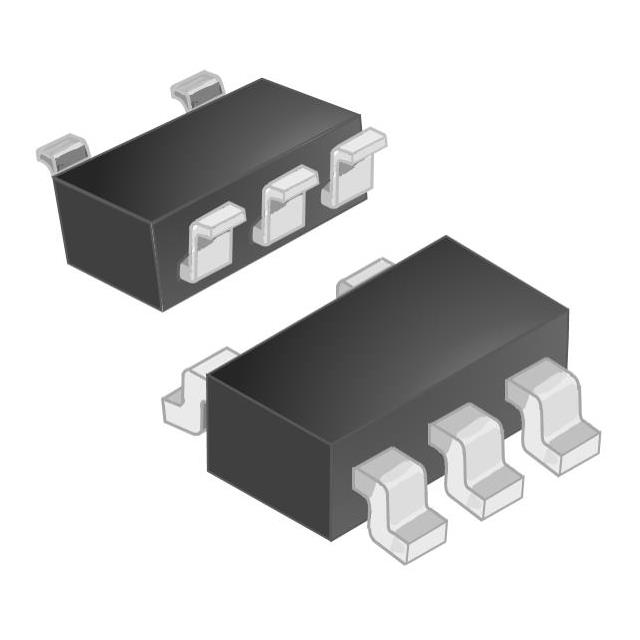

GLF1200Q

Active

GLF Integrated Power

LOAD SWITCH WITH TRUE REVERSE CU

Search across all available documentation for this part.

Active

GLF Integrated Power

LOAD SWITCH WITH TRUE REVERSE CU

Technical Specifications

Parameters and characteristics commom to parts in this series

LOAD SWITCH WITH TRUE REVERSE CU

Part	Output Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Rds On (Typ)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Package / Case	Supplier Device Package
GLF Integrated Power GLF1200Q	P-Channel	5.5 V	1.5 V	60 mOhm	Surface Mount	85 °C	-40 °C	2 A	SC-74A, SOT-753	SOT-23-5
GLF Integrated Power GLF1200	P-Channel	5.5 V	1.5 V	54 mOhm	Surface Mount	85 °C	-40 °C	2 A	SC-74A, SOT-753	SOT-23-5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Switch/Driver P-Channel 2A SOT-23-5
