Description
General part information
UTSX010D7S

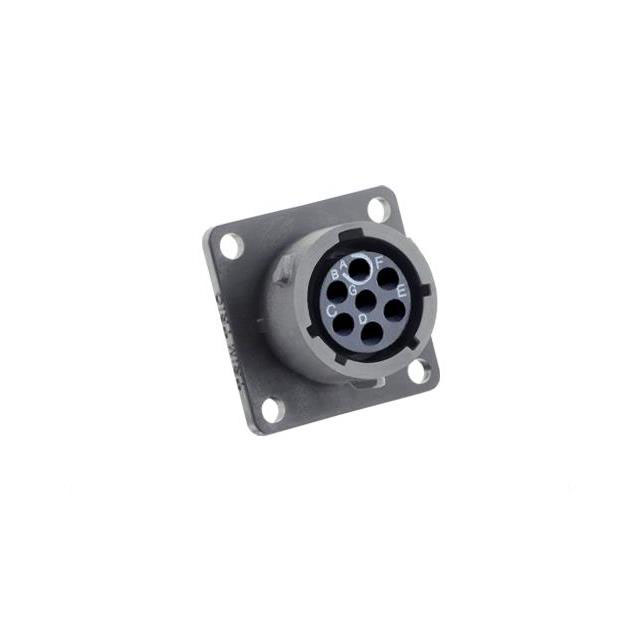

7 Position Circular Connector Receptacle, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | UTSX010D7S |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Current Rating | 6 A |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | Neoprene |
| Material Flammability Rating | UL94 HB |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 7 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert Length | 10 mm |
| Shell Size - Insert Width | 7 mm |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250 V |
