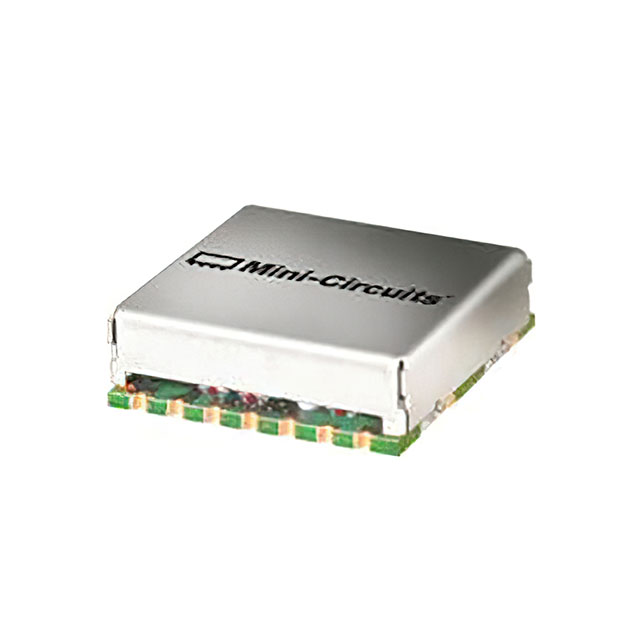

BPF-C70+
ActiveMini-Circuits
RF FILTER BAND PASS 70MHZ 14SMD
BPF-C70+
ActiveMini-Circuits
RF FILTER BAND PASS 70MHZ 14SMD
Description
General part information
BPF-C70+
70MHz Center Frequency Band Pass RF Filter (Radio Frequency) 1MHz Bandwidth 8dB 14-SMD Module
Technical Specifications
Parameters and characteristics for this part
| Specification | BPF-C70+ |
|---|---|
| Bandwidth | 1 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 70 MHz |
| Height (Max) | 0.25 in |
| Insertion Loss | 8 dB |
| Mounting Type | Surface Mount |
| Package / Case | 14-SMD Module |
| Size / Dimension Length | 0.87 in |
| Size / Dimension Width | 0.8 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
