BMH1402P17F2A
ActiveSCHNEIDER ELECTRIC
MOTOR 140MM IEC 18,5NM IP54 3600
BMH1402P17F2A
ActiveSCHNEIDER ELECTRIC
MOTOR 140MM IEC 18,5NM IP54 3600
Description
General part information
BMH1402P17F2A

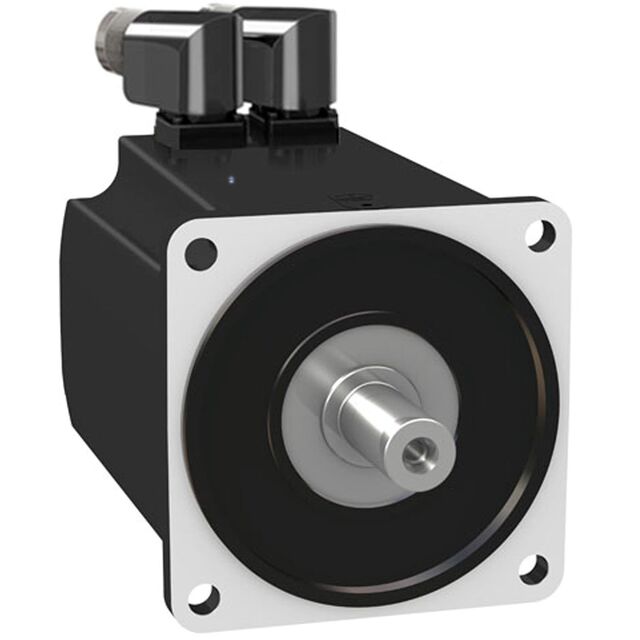

AC Motor Servomotor 4000 RPM 3.5kW 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BMH1402P17F2A |
|---|---|
| Diameter - Shaft | 0.945 in |
| Features | Brake, Key |
| Function | Servomotor |
| Length - Shaft and Bearing | 1.969 in |
| Mounting Hole Spacing | 5.118 in |
| Power - Rated | 3.5 kW |
| RPM | 4000 RPM |
| Size / Dimension Length | 5.512 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 5.512 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 12200 mNm |
| Torque - Rated (oz-in) | 1728 oz-in |
| Type | AC Motor |
| Voltage - Rated | 480 VAC |
