207543-1
ActiveTE Connectivity AMP Connectors

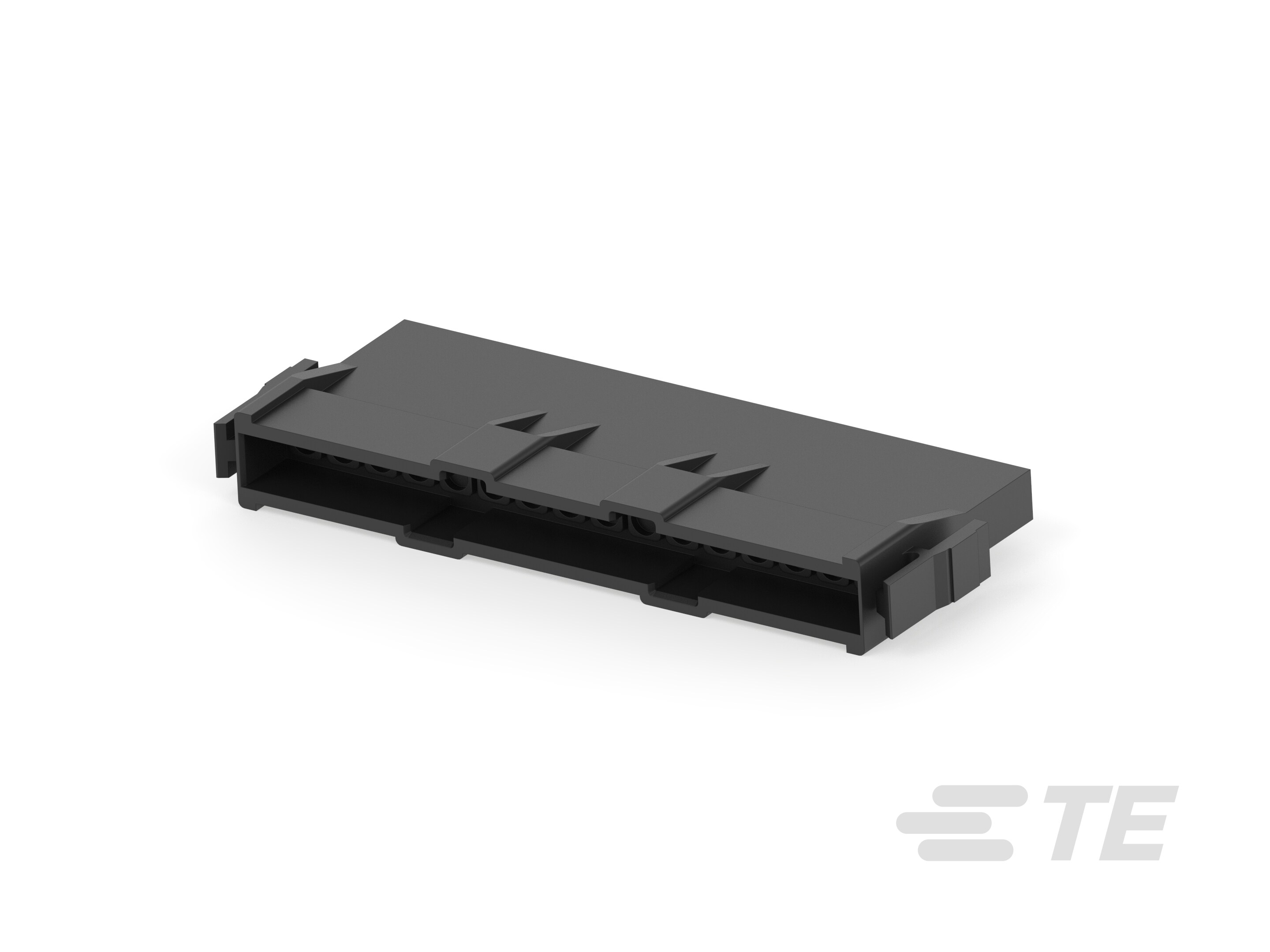

CONN HOUSING RCP 16 POS 5MM CRIMP ST CABLE MOUNT BLACK CARTON
207543-1
ActiveTE Connectivity AMP Connectors
CONN HOUSING RCP 16 POS 5MM CRIMP ST CABLE MOUNT BLACK CARTON
Description
General part information
207543-1
16 Position, Receptacle, Housing, Wire-to-Wire, UL 94V-0, 5 mm [.197 in] Centerline, 1 Row, 600 VAC, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 207543-1 |
|---|---|
| Color | Black, Red |
| Connector Type | Receptacle |
| Contact Termination | Crimp and Solder, Crimp, Solder |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 16 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
