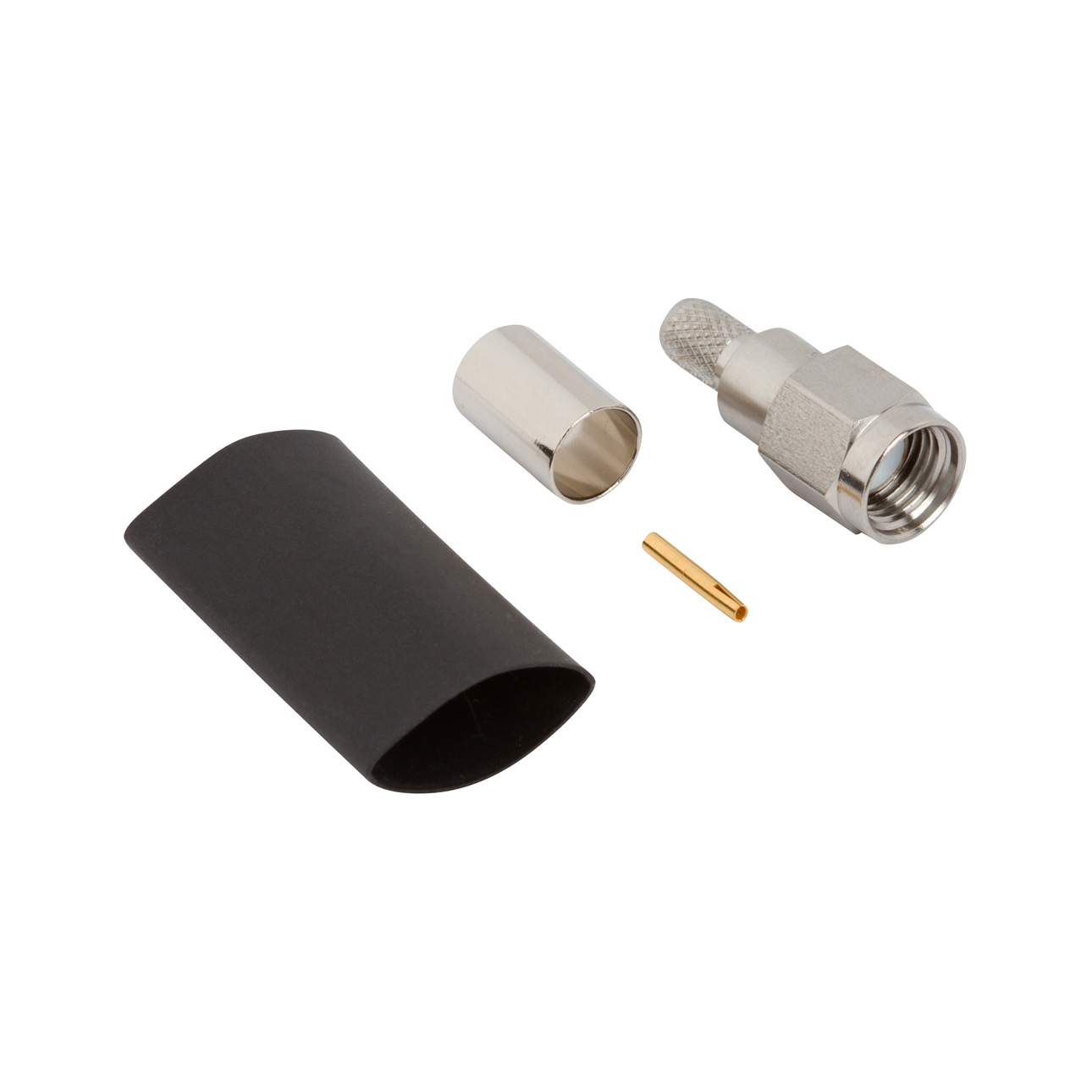

Specification	901-9884

Body Material	Stainless Steel
Cable Group	400, 142, RG-55, 223
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	12.4 GHz
Housing Color	Silver
Impedance	50 Ohm
Includes	Ferrule, Connector
Includes Total Count	2 pcs
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp
Voltage Rating	500 V

901-98 Series

Part	Cable Group	Housing Color	Center Contact Material	Frequency - Max	Fastening Type	Number of Ports	Connector Type	Mounting Feature	Shield Termination	Contact Termination	Impedance	Ingress Protection	Mounting Type	Connector Style	Dielectric Material	Center Contact Plating	Body Finish	Body Material	Includes	Includes Total Count	Voltage Rating	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Cable Group Diameter (Default)	Cable Group Diameter (Semi Rigid)	Features
McGill Microwave Systems 901-9879-RFX	188 188A 316 LMR-100 M17/119-RG174 RG-174	Silver	Beryllium Copper	12.4 GHz	Threaded	1	Female Socket Jack	Bulkhead Front Side Nut	Crimp	Solder	50 Ohm	Weatherproof	Panel Mount	SMA	Polytetrafluoroethylene (PTFE)	Gold	Nickel	Brass	Connector Contact Ferrule Heat Shrink Lockwasher Nut	6 pcs	375 V	500 cycles	-65 °C	165 °C
McGill Microwave Systems 901-9894-RFX		Gold	Brass	18 GHz	Threaded	1	Male Pin Plug		Solder	Solder	50 Ohm	Weatherproof	Right Angle Through Hole	SMA	Polytetrafluoroethylene (PTFE)	Gold	Gold	Brass				500 cycles	-65 °C	165 °C
McGill Microwave Systems 901-9805-HP	RG-405	Gold Silver	Beryllium Copper	18 GHz	Threaded	1	Male Pin Plug		Solder	Solder	50 Ohm		Free Hanging (In-Line)	SMA	Polytetrafluoroethylene (PTFE)	Gold	Gold Passivated	Stainless Steel				500 cycles	-65 °C	165 °C	0.085 in	0.086 in
McGill Microwave Systems 901-9875	188 188A 316 LMR-100 M17/119-RG174 RG-174	Gold	Beryllium Copper	12.4 GHz	Threaded	1	Female Socket Jack	Bulkhead Front Side Nut	Crimp	Solder	50 Ohm	Weatherproof	Panel Mount	SMA	Polytetrafluoroethylene (PTFE)	Gold	Gold	Brass	Connector Contact Ferrule Heat Shrink Lockwasher Nut	6 pcs	375 V	500 cycles	-65 °C	165 °C
McGill Microwave Systems 901-9868-RFX	RG-402	Gold	Brass	18 GHz	Threaded	1	Male Pin Plug		Solder	Solder	50 Ohm		Free Hanging (In-Line)	SMA	Polytetrafluoroethylene (PTFE)	Gold	Gold	Brass	Connector Contact Insulator	3 pcs		500 cycles	-65 °C	165 °C		0.141 in
McGill Microwave Systems 901-9870	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Gold	Brass	12.4 GHz	Threaded	1	Male Pin Plug		Crimp	Solder	50 Ohm		Free Hanging (In-Line)	SMA	Polytetrafluoroethylene (PTFE)	Gold	Gold	Brass	Connector Ferrule	2 pcs	500 V	500 cycles	-65 °C	165 °C
McGill Microwave Systems 901-9863	188 188A 316 LMR-100 M17/119-RG174 RG-174	Gold	Beryllium Copper	12.4 GHz	Threaded	1	Jack Male Pin	Bulkhead Front Side Nut	Crimp	Crimp	50 Ohm		Panel Mount	RP-SMA	Polytetrafluoroethylene (PTFE)	Gold	Gold	Stainless Steel	Connector Nut	2 pcs	375 V	500 cycles	-65 °C	165 °C
McGill Microwave Systems 901-9876-RFX	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Silver	Brass	12.4 GHz	Threaded	1	Male Pin Plug		Crimp	Solder	50 Ohm		Free Hanging (In-Line)	SMA	Polytetrafluoroethylene (PTFE)	Gold	Nickel	Brass	Connector Contact Ferrule	3 pcs	500 V	500 cycles	-65 °C	165 °C
McGill Microwave Systems 901-9891-RFX		Silver	Beryllium Copper	18 GHz	Threaded	1	Female Socket Recepture	Flange	Solder	Solder	50 Ohm		Panel Mount	SMA	Polytetrafluoroethylene (PTFE)	Gold	Nickel	Brass				500 cycles	-65 °C	165 °C			Extended Insulation
McGill Microwave Systems 901-9895-RFX		Gold	Brass	18 GHz	Threaded	1	Male Pin Plug		Solder	Solder	50 Ohm	Weatherproof	Through Hole	SMA	Polytetrafluoroethylene (PTFE)	Gold	Gold	Brass				500 cycles	-65 °C	165 °C
