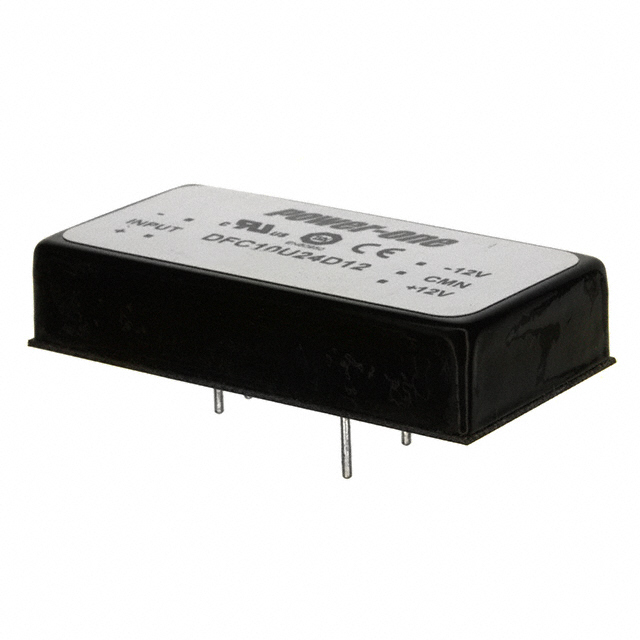

DFC10U24D12
ObsoleteBel Fuse Inc.
DC DC CONVERTER +/-12V 10W
DFC10U24D12
ObsoleteBel Fuse Inc.
DC DC CONVERTER +/-12V 10W
Description
General part information
DFC10U24D12
Isolated Module DC DC Converter 2 Output 12V -12V 400mA, 400mA 9V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | DFC10U24D12 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 400 mA |
| Efficiency | 78 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -50 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 10 W |
| Size / Dimension Height | 0.42 in |
| Size / Dimension Length | 2.02 in |
| Size / Dimension Width | 1.02 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 9 V |
| Voltage - Isolation | 700 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
