N390X-01M-8L-AP
ActiveEaton Tripp Lite
400G SINGLEMODE 9/125 OS2 SWITCH
N390X-01M-8L-AP
ActiveEaton Tripp Lite
400G SINGLEMODE 9/125 OS2 SWITCH
Description
General part information
N390X-01M-8L-AP

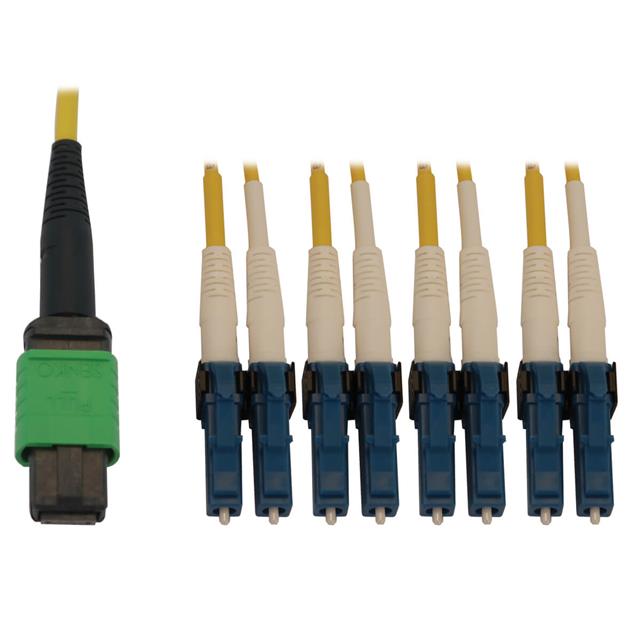

Cable Fiber Optic LC Duplex (4) To MTP 9/125 3.3' (1.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | N390X-01M-8L-AP |
|---|---|
| 1st Connector | LC Duplex |
| 1st Connector Quantity | 4 |
| 2nd Connector | MTP |
| Bend Radius | 10 mm |
| Color - Cable | Yellow |
| Color - Connectors | Black, Blue, Green |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 9 µm |
| Insertion Loss | 0.7 dB |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 3.3 ft |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Type | OS2, Duplex, Singlemode |
