Y80612
ObsoleteTE Connectivity AMP Connectors
RF ANT 851MHZ YAGI N FEM BRKT MT
Y80612
ObsoleteTE Connectivity AMP Connectors
RF ANT 851MHZ YAGI N FEM BRKT MT
Description
General part information
Y80612

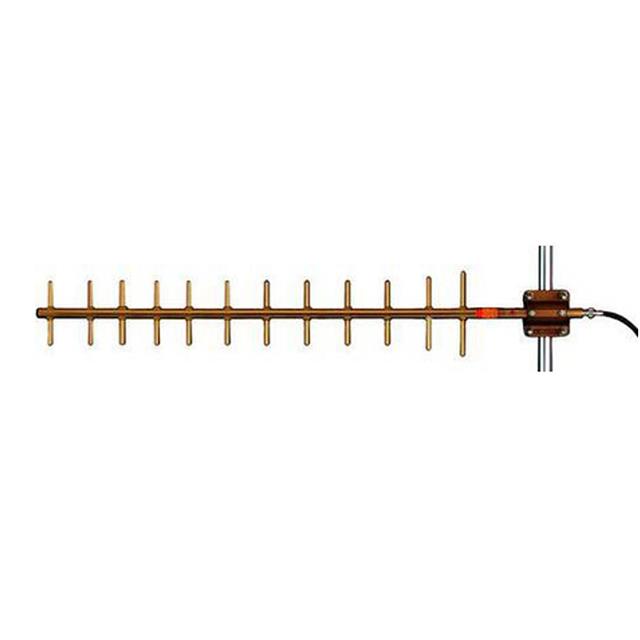

RF ANTENNA Yagi, 12-Element N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | Y80612 |
|---|---|
| Antenna Element Count | 12 elements |
| Antenna Type | Yagi |
| Frequency (Center/Band) | 851 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 896 MHz |
| Frequency Range (Min) | 806 MHz |
| Gain | 11 dBd |
| Height (Max) | 49 " |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Termination | N Type Female |
| VSWR | 1.5 |
