Description
General part information

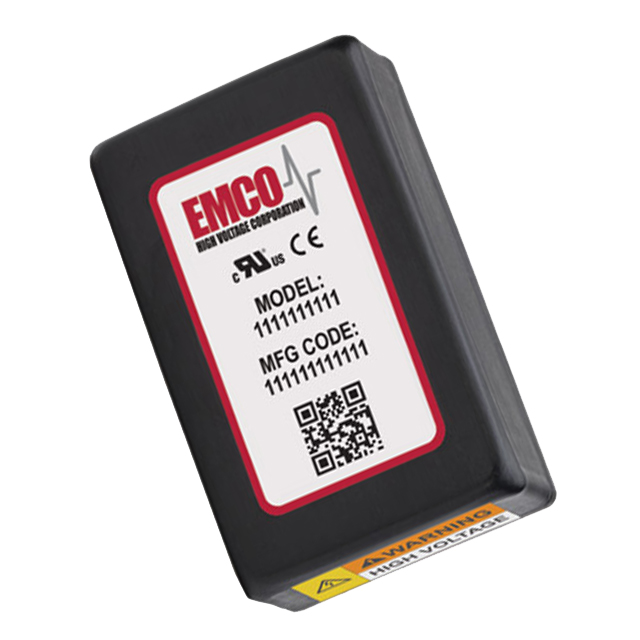

F02CT
High Voltage - Isolated Module DC DC Converter 2 Output 100V -100V 50mA, 50mA 0V - 12V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | F02CT |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) Options | 50mA |
| Features | Proportional Output |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 10 W |
| Size / Dimension Height | 0.85 in |
| Size / Dimension Length | 2.8 in |
| Size / Dimension Width | 1.7 in |
| Type | High Voltage - Isolated Module |
| Voltage - Input (Max) | 12 V |
| Voltage - Input (Min) | 0 V |
| Voltage - Isolation | 3500 Vrms |
| Voltage - Output 1 | 100 V |
| Voltage - Output 2 | -100 V |
